Product Model

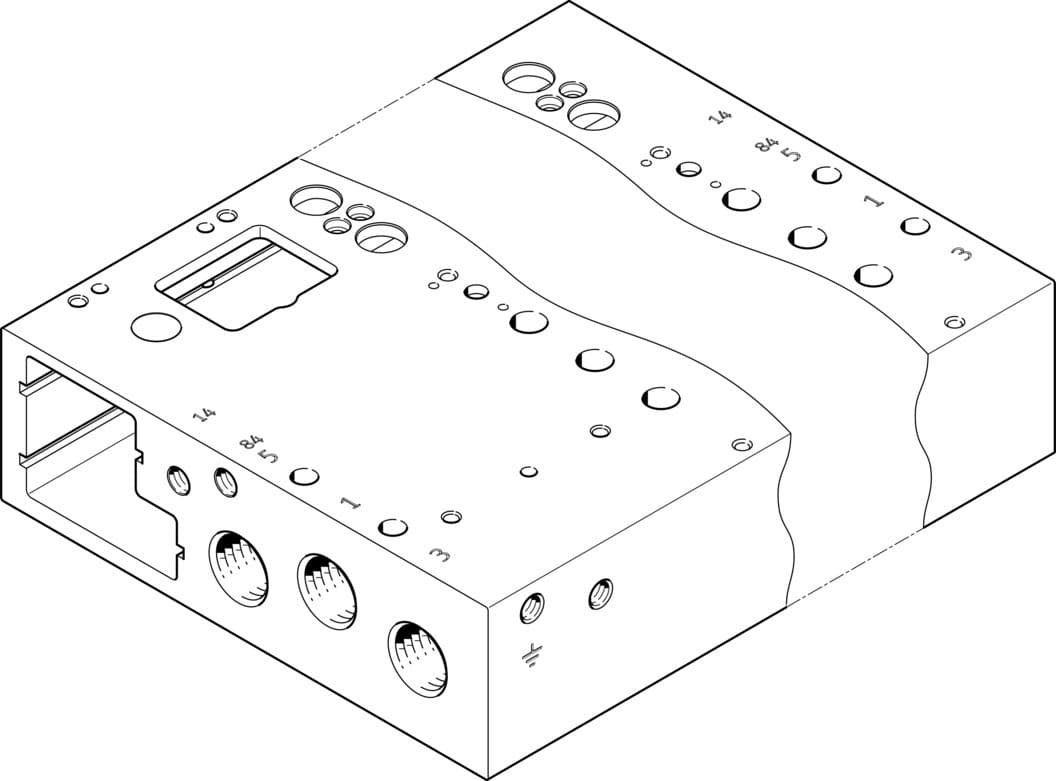

vabm-l1-14g-g14-24-m-gr
Selling Points
- 116mm Grid Dimension: Precise and compact design for efficient pneumatic systems.
- 2Optional Mounting Position: Flexible installation options to suit various application needs.
- 324 Max Valve Positions: High capacity manifold rail for complex pneumatic setups.
- 4C UL us - Recognized (OL) Approval: Meets stringent safety standards for reliable operation.
- 5RoHS-Compliant Wrought Aluminium Alloy: Environmentally friendly and durable material construction.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 16mm | Mounting position | Any |
Max. no. of valve positions | 24 | Certification | c UL us - Recognized (OL) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Storage temperature | -20°C 60°C | Product weight | 3099g |
Pilot air port 12/14 | M5 | Pilot exhaust air port 82/84 | M5 |
Pneumatic connection 1 | G1/4 | Pneumatic connection 3 | G1/4 |
Pneumatic connection 5 | G1/4 | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 573935 |
Specifications may be subject to change without notice
