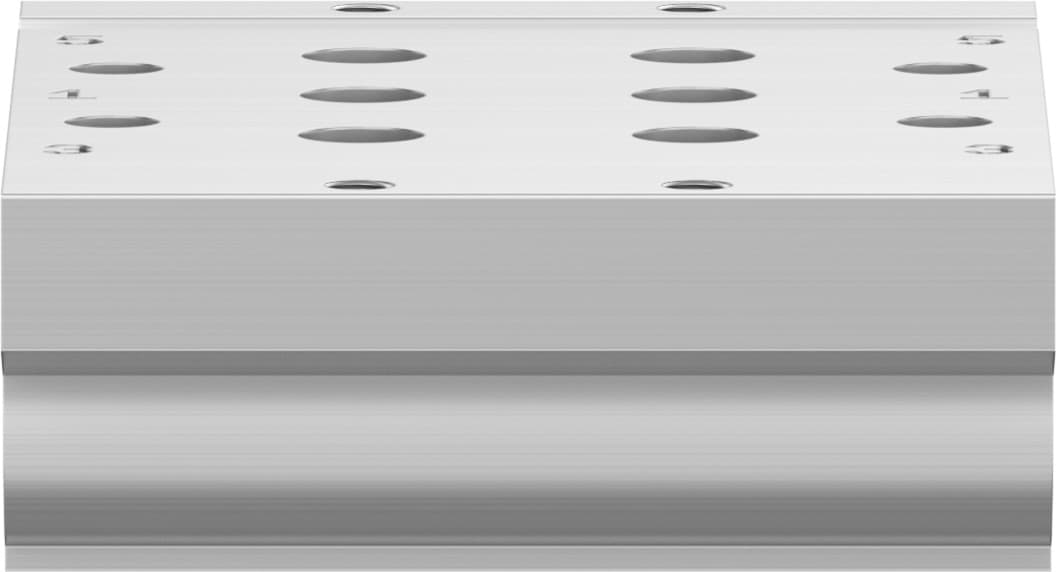

Product Model
vabm-l1-14s-g14-2
Selling Points
- 1High Precision Grid Dimension: 16 mm grid dimension for precise valve positioning.
- 2Robust Operating Pressure: Operating pressure range of -0.9 to 10 bar for reliable performance.
- 3Corrosion Resistance: Moderate corrosion stress resistance with CRC 2 classification.
- 4Compliant Materials: Made from RoHS-compliant wrought aluminum alloy for durability.
- 5Versatile Connections: Three G1/4" threaded pneumatic connections for easy integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 16mm | Max. no. of valve positions | 16 |
Operating pressure | -0.9bar 10bar | Certification | RCM compliance mark c UL us - Recognized (OL) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Class 5 according to ISO 14644-1 |
Max. tightening torque for H-rail mounting: | 1.5Nm | Max. tightening torque for valve mounting | 0.65Nm |
Max. tightening torque for wall mounting | 3Nm | Product weight | 118g |
Pneumatic connection 1 | G1/4 | Pneumatic connection 3 | G1/4 |
Pneumatic connection 5 | G1/4 | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 566618 |
Specifications may be subject to change without notice
