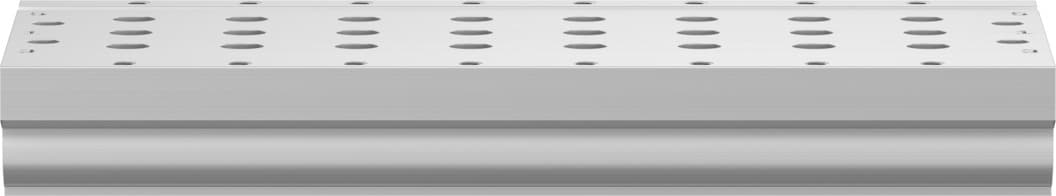

Product Model
vabm-l1-14s-g14-8
Selling Points
- 116 Valve Positions: Ideal for complex pneumatic systems with multiple valve configurations.
- 2Moderate Corrosion Resistance: Ensures durability in various industrial environments with CRC 2 classification.
- 3Operating Pressure Range: -0.9 to 10 bar, suitable for a wide range of pneumatic applications.
- 4Compact Design: Grid dimension of 16 mm, perfect for space-efficient installations.
- 5RoHS Compliant: Meets European Union's Restriction of Hazardous Substances regulations, ensuring environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 16mm | Max. no. of valve positions | 16 |
Operating pressure | -0.9bar 10bar | Certification | RCM compliance mark c UL us - Recognized (OL) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Class 5 according to ISO 14644-1 |
Max. tightening torque for H-rail mounting: | 1.5Nm | Max. tightening torque for valve mounting | 0.65Nm |
Max. tightening torque for wall mounting | 3Nm | Product weight | 364g |
Pneumatic connection 1 | G1/4 | Pneumatic connection 3 | G1/4 |
Pneumatic connection 5 | G1/4 | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 566624 |
Specifications may be subject to change without notice
