Product Model

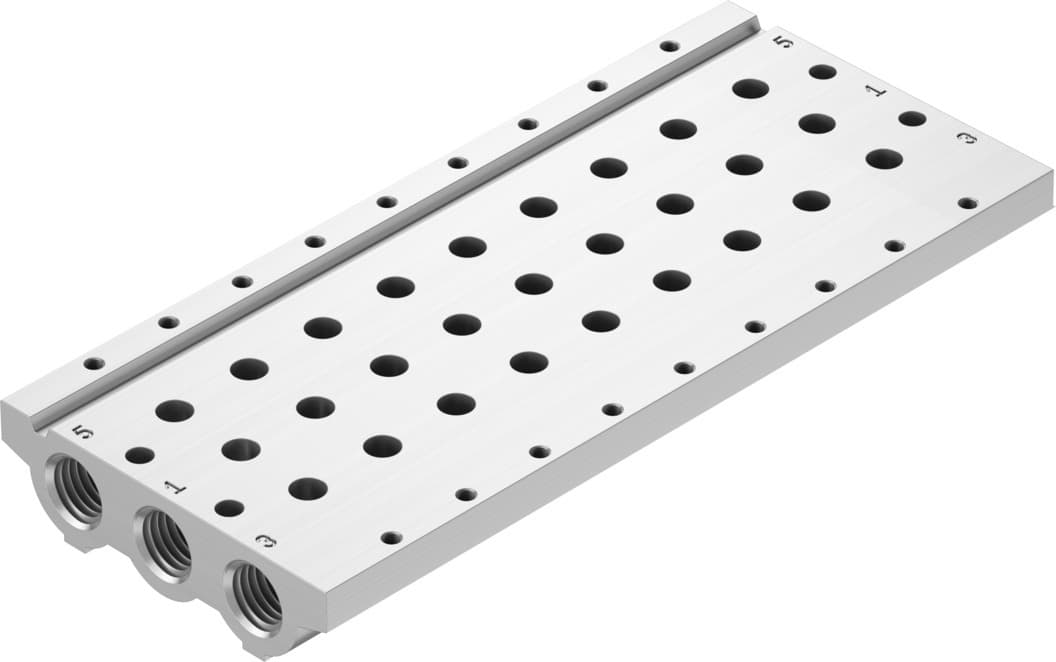

vabm-l1-14s-g14-9
Selling Points
- 1High Precision: Ensures accurate valve positioning with a maximum of 16 valve positions.
- 2Moderate Corrosion Resistance: Meets CRC class 2 standards, suitable for various industrial environments.
- 3Compliance with RCM and UL Standards: Certified for use in cleanroom applications and recognized by UL.
- 4Cleanroom Compatibility: Designed to meet Class 5 cleanroom standards according to ISO 14644-1.
- 5Versatile Pneumatic Connections: Equipped with multiple G1/4 pneumatic connections for flexible setup options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 16mm | Max. no. of valve positions | 16 |
Operating pressure | -0.9bar 10bar | Certification | RCM compliance mark c UL us - Recognized (OL) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Class 5 according to ISO 14644-1 |
Max. tightening torque for H-rail mounting: | 1.5Nm | Max. tightening torque for valve mounting | 0.65Nm |
Max. tightening torque for wall mounting | 3Nm | Product weight | 405g |
Pneumatic connection 1 | G1/4 | Pneumatic connection 3 | G1/4 |
Pneumatic connection 5 | G1/4 | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 566625 |
Specifications may be subject to change without notice
