Product Model

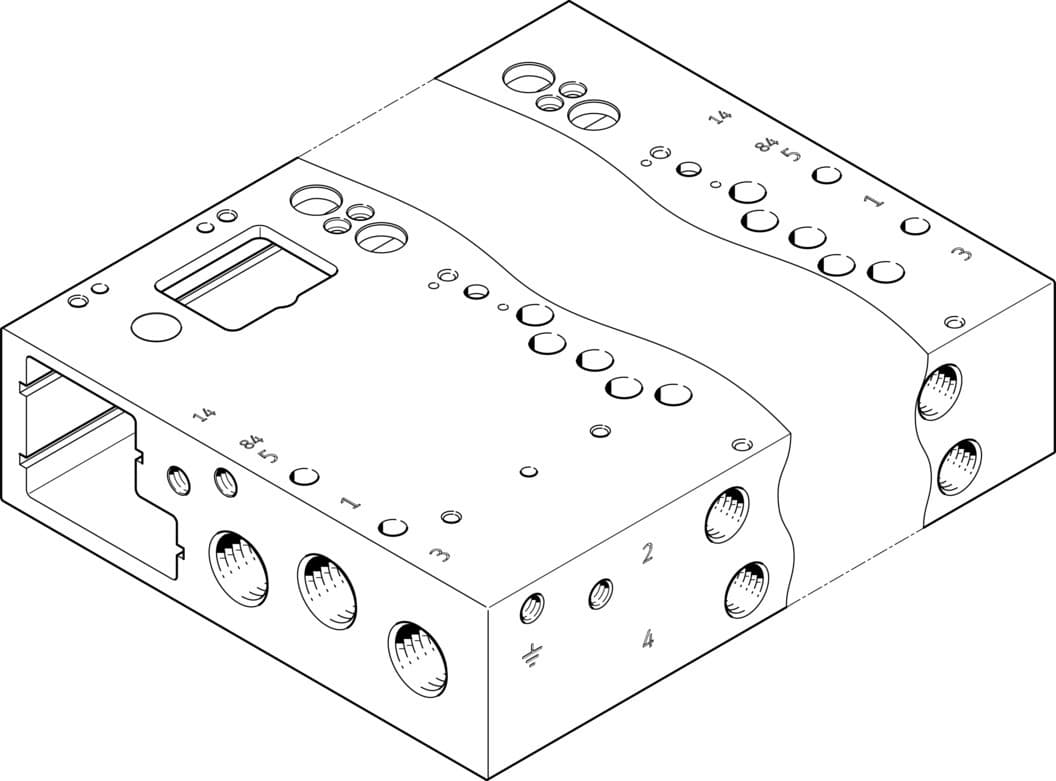

vabm-l1-14w-g14-10-gr
Selling Points
- 110 Outlets for Versatile Pneumatic Control: The VABM-L1-14W-G14-10-GR manifold rail offers 10 pneumatic connections for flexible control in various industrial applications.
- 2Moderate Corrosion Resistance: With a corrosion resistance class of 2, this manifold rail is designed to withstand moderate corrosion stress, ensuring durability in demanding environments.
- 3Cleanroom Compatibility: Certified to cleanroom class 6 according to ISO 14644-1, making it suitable for use in cleanroom settings where precision is crucial.
- 4Compliant with RoHS: The product is RoHS-compliant, ensuring it meets environmental regulations by avoiding hazardous substances.
- 5Wide Temperature Range: Operable between -20 °C and 60 °C, providing flexibility in storage and operation across different temperature conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 16mm | Mounting position | Any |
Max. no. of valve positions | 10 | Certification | c UL us - Recognized (OL) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Class 6 according to ISO 14644-1 |
Storage temperature | -20°C 60°C | Product weight | 1445g |
Pilot air port 12/14 | M5 | Pilot exhaust air port 82/84 | M5 |
Pneumatic connection 1 | G1/4 | Pneumatic connection 2 | G1/8 |
Pneumatic connection 3 | G1/4 | Pneumatic connection 4 | G1/8 |
Pneumatic connection 5 | G1/4 | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 573506 |
Specifications may be subject to change without notice
