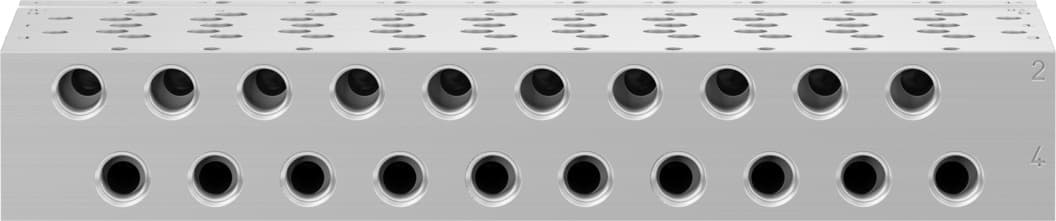

Product Model
vabm-l1-14w-g14-12
Selling Points
- 1Robust Construction: Built with wrought aluminum alloy for durability and corrosion resistance.
- 2Versatile Connections: Equipped with G1/4 and G1/8 pneumatic connections for versatile setup options.
- 3High Pressure Handling: Operates within -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) for reliable performance.
- 4Easy Installation: Designed with a max tightening torque of 1.5 Nm for h-rail mounting and 0.65 Nm for valve mounting.
- 5Compliance and Safety: Meets RCM trademark approval and C UL us - Recognized (OL) standards for safety and compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 16mm | Max. no. of valve positions | 16 |
Operating pressure | -0.9bar 10bar | Certification | RCM compliance mark c UL us - Recognized (OL) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Max. tightening torque for H-rail mounting: | 1.5Nm | Max. tightening torque for valve mounting | 0.65Nm |
Max. tightening torque for wall mounting | 3Nm | Product weight | 972g |
Pilot air port 12/14 | M5 | Pilot exhaust air port 82/84 | M5 |
Pneumatic connection 1 | G1/4 | Pneumatic connection 2 | G1/8 |
Pneumatic connection 3 | G1/4 | Pneumatic connection 4 | G1/8 |
Pneumatic connection 5 | G1/4 | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 566651 |
Specifications may be subject to change without notice
