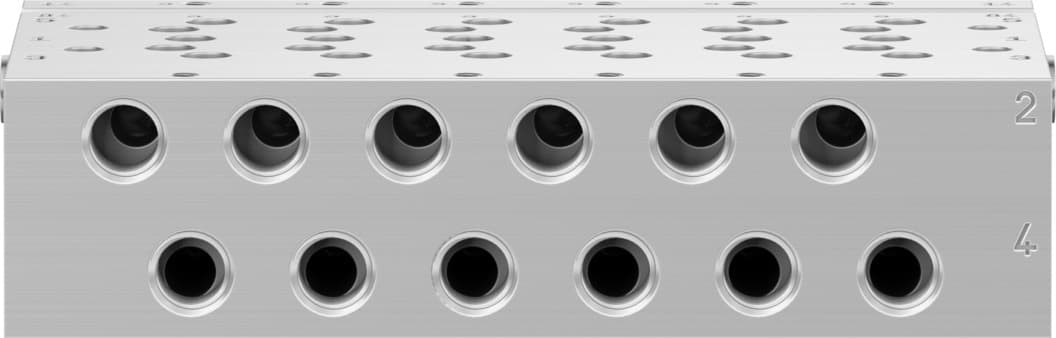

Product Model
vabm-l1-14w-g14-5
Selling Points
- 116 Valve Positions: Accommodate multiple pneumatic connections with up to 16 valve positions.
- 2Moderate Corrosion Resistance: Built with a corrosion resistance classification of CRC=2, ensuring durability in various environments.
- 3Operating Pressure Range: Operate efficiently within a pressure range of -0.9 to 10 bar.
- 4Compact Design: Measuring 16 mm grid dimension, ideal for space-constrained applications.
- 5Compliance and Certifications: RCM Mark, c CSA US (OL), and c UL US – Recognized (OL) for safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 16mm | Max. no. of valve positions | 16 |
Operating pressure | -0.9bar 10bar | Certification | RCM compliance mark c UL us - Recognized (OL) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Max. tightening torque for H-rail mounting: | 1.5Nm | Max. tightening torque for valve mounting | 0.65Nm |
Max. tightening torque for wall mounting | 3Nm | Product weight | 454g |
Pilot air port 12/14 | M5 | Pilot exhaust air port 82/84 | M5 |
Pneumatic connection 1 | G1/4 | Pneumatic connection 2 | G1/8 |
Pneumatic connection 3 | G1/4 | Pneumatic connection 4 | G1/8 |
Pneumatic connection 5 | G1/4 | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 566645 |
Specifications may be subject to change without notice
