Product Model

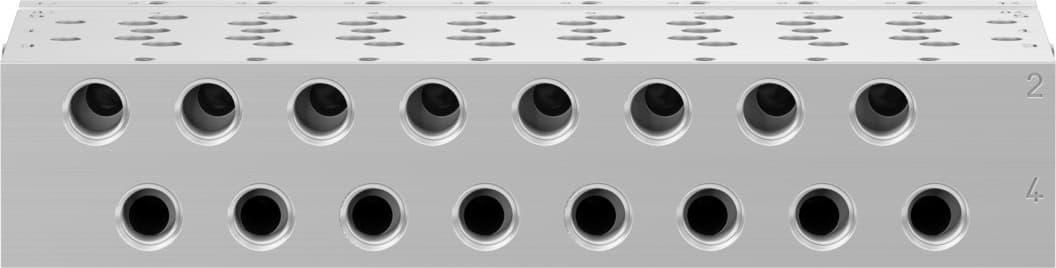

vabm-l1-14w-g14-7
Selling Points
- 1Built with a 16mm grid dimension for precise valve positioning.
- 2Classified as CRC 2, ensuring durability in various environments.
- 3Suitable for any mounting position, enhancing flexibility in system design.
- 4Meets c UL us - Recognized (OL) standards and is RoHS-compliant.
- 5Designed to operate within -0.09 MPa to 1 MPa pressure range, ensuring reliable performance in pneumatic applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 16mm | Max. no. of valve positions | 16 |
Operating pressure | -0.9bar 10bar | Certification | RCM compliance mark c UL us - Recognized (OL) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Max. tightening torque for H-rail mounting: | 1.5Nm | Max. tightening torque for valve mounting | 0.65Nm |
Max. tightening torque for wall mounting | 3Nm | Product weight | 602g |
Pilot air port 12/14 | M5 | Pilot exhaust air port 82/84 | M5 |
Pneumatic connection 1 | G1/4 | Pneumatic connection 2 | G1/8 |
Pneumatic connection 3 | G1/4 | Pneumatic connection 4 | G1/8 |
Pneumatic connection 5 | G1/4 | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 566647 |
Specifications may be subject to change without notice
