Product Model

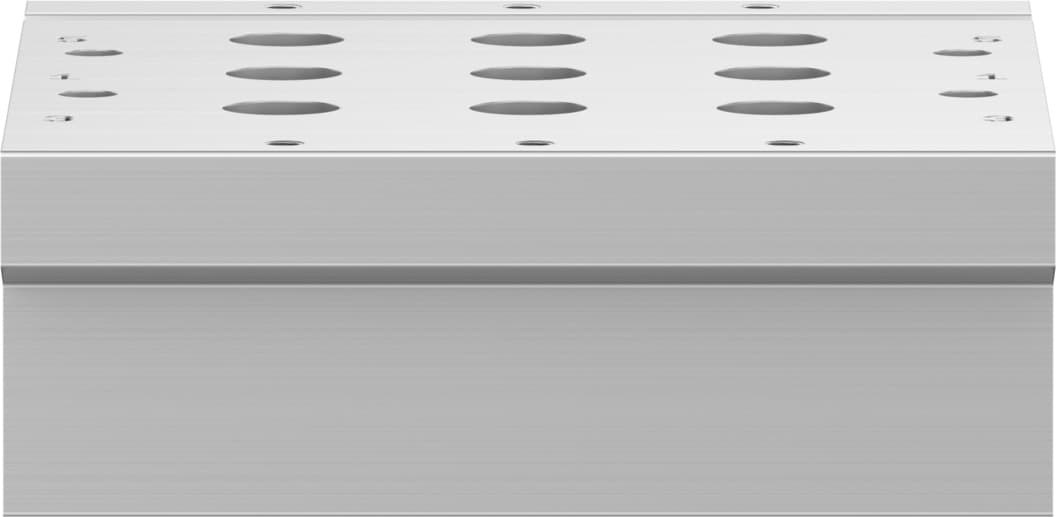

vabm-l1-18s-g38-3
Selling Points
- 1-0.9 to 10 bar, suitable for various pneumatic applications.
- 2Made from wrought aluminum alloy for durability and corrosion resistance.
- 3Three outlets with G3/8 connections for versatile valve configurations.
- 4RoHS compliant and no SVHC, ensuring environmental safety.
- 5Designed with a maximum tightening torque of 1.5 Nm for easy assembly and mounting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 19mm | Max. no. of valve positions | 16 |
Operating pressure | -0.9bar 10bar | Certification | RCM compliance mark c UL us - Recognized (OL) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Class 5 according to ISO 14644-1 |
Max. tightening torque for H-rail mounting: | 1.5Nm | Max. tightening torque for valve mounting | 1.18Nm |
Max. tightening torque for wall mounting | 3Nm | Product weight | 297g |
Pneumatic connection 1 | G3/8 | Pneumatic connection 3 | G3/8 |
Pneumatic connection 5 | G3/8 | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 574456 |
Specifications may be subject to change without notice
