Product Model

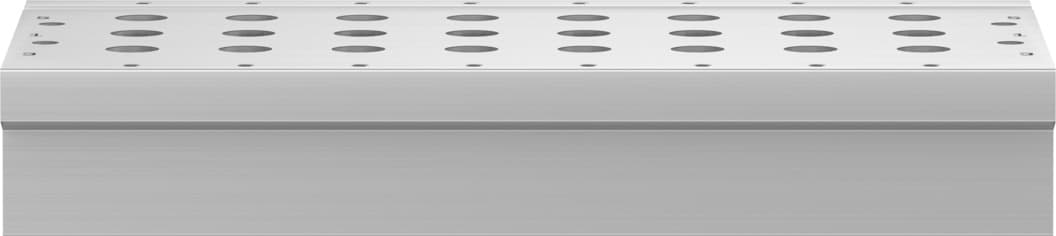

vabm-l1-18s-g38-7
Selling Points
- 116 Valve Positions: Supports up to 16 valve positions for complex pneumatic systems.
- 2Moderate Corrosion Resistance: Classified as CRC 2, suitable for moderate corrosion stress environments.
- 3Cleanroom Class: Meets Class 5 standards according to ISO 14644-1, ideal for cleanroom applications.
- 4RoHS Compliant: Compliant with RoHS regulations, ensuring environmental safety.
- 5Grid Dimension: 19 mm grid dimension for precise valve positioning and alignment.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 19mm | Max. no. of valve positions | 16 |
Operating pressure | -0.9bar 10bar | Certification | RCM compliance mark c UL us - Recognized (OL) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Class 5 according to ISO 14644-1 |
Max. tightening torque for H-rail mounting: | 1.5Nm | Max. tightening torque for valve mounting | 1.18Nm |
Max. tightening torque for wall mounting | 3Nm | Product weight | 581g |
Pneumatic connection 1 | G3/8 | Pneumatic connection 3 | G3/8 |
Pneumatic connection 5 | G3/8 | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 574460 |
Specifications may be subject to change without notice
