Product Model

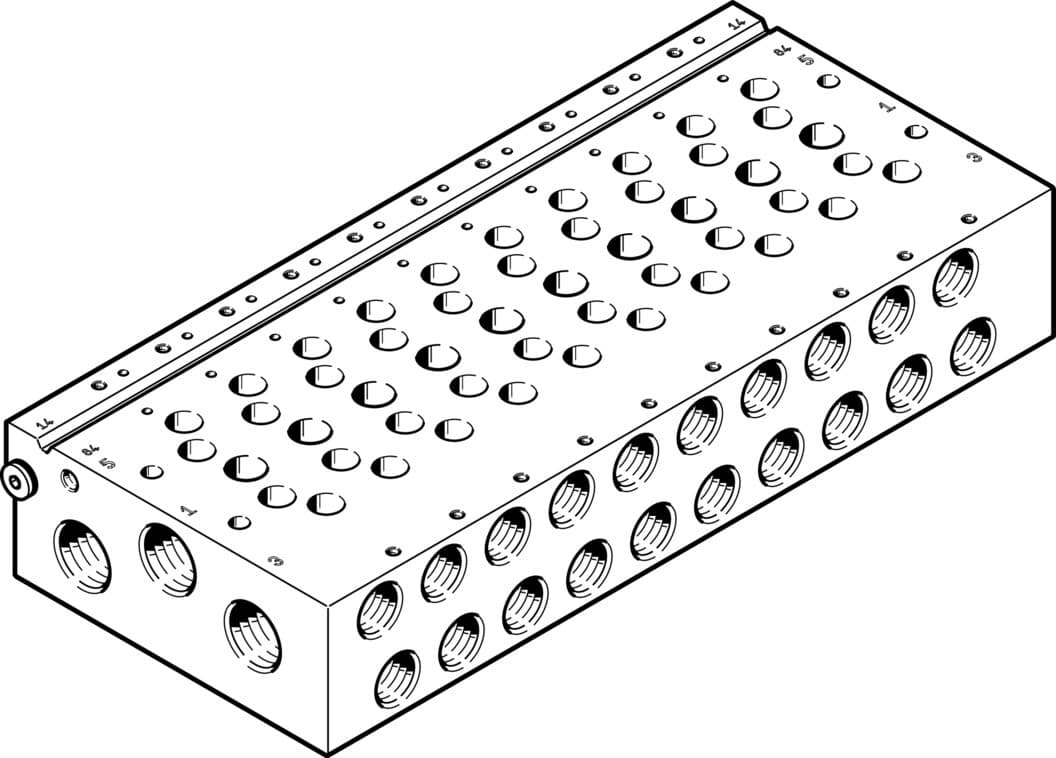

vabm-l1-18w-g38-2
Selling Points
- 1Compact Design: The VABM-L1-18W-G38-2 features a compact grid dimension of 19 mm, making it perfect for space-constrained environments.
- 2High Valve Capacity: Supports up to 16 valve positions, ensuring efficient control over pneumatic systems.
- 3Robust Construction: Made from RoHS-compliant wrought aluminum alloy, providing excellent corrosion resistance and durability.
- 4Versatile Connections: Equipped with M5 pilot air and exhaust ports, as well as G3/8 and G1/4 pneumatic connections for versatile system integration.
- 5Compliance and Certifications: Meets RCM trademark approval and is recognized by c UL us (OL), ensuring compliance with international safety standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 19mm | Max. no. of valve positions | 16 |
Operating pressure | -0.9bar 10bar | Certification | RCM compliance mark c UL us - Recognized (OL) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Max. tightening torque for H-rail mounting: | 1.5Nm | Max. tightening torque for valve mounting | 1.18Nm |
Max. tightening torque for wall mounting | 3Nm | Product weight | 467g |
Pilot air port 12/14 | M5 | Pilot exhaust air port 82/84 | M5 |
Pneumatic connection 1 | G3/8 | Pneumatic connection 2 | G? |
Pneumatic connection 3 | G3/8 | Pneumatic connection 4 | G1/4 |
Pneumatic connection 5 | G3/8 | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 574467 |
Specifications may be subject to change without notice
