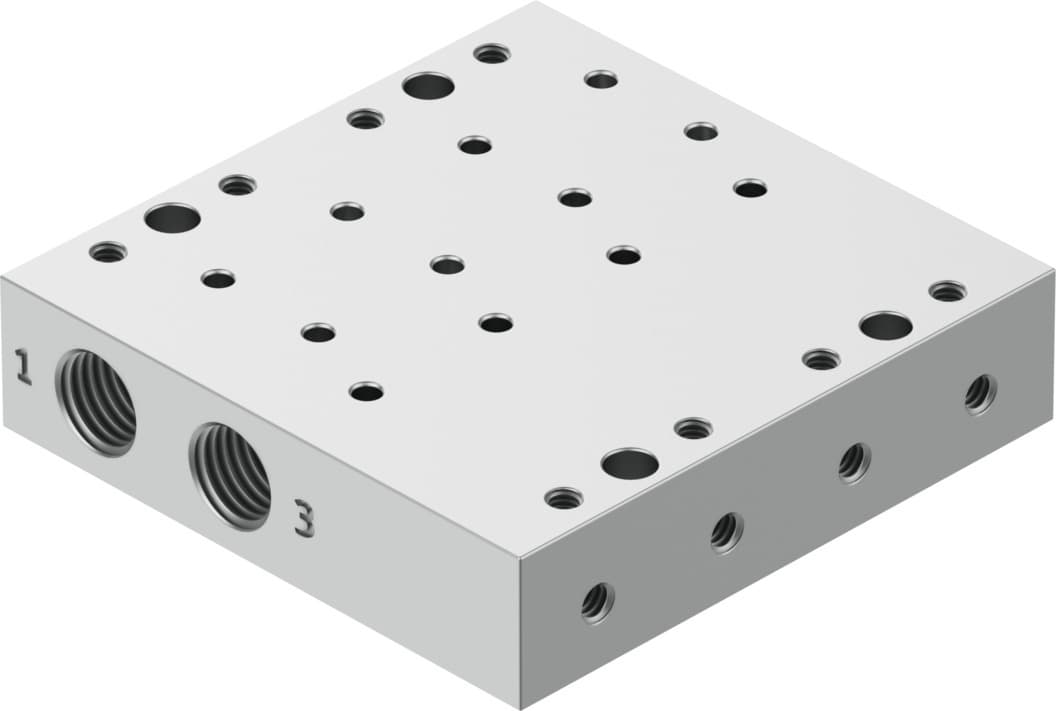

Product Model
vabm-p6-15mb-g18-m5-4
Selling Points
- 115mm grid dimension for efficient space utilization.
- 2Wrought aluminum alloy for durability and corrosion resistance.
- 3Pneumatic connections (G1/8 and M5) for flexible setup.
- 4Max. tightening torque of 0.6Nm for secure valve mounting.
- 5LABS (PWIS) conformity and VDMA24364-B2-L certification.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 15mm | Structural design | Connection direction downwards |
Max. no. of valve positions | 4 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Max. tightening torque for valve mounting | 0.6Nm |
Product weight | 140g | Pneumatic connection 1 | G1/8 |
Pneumatic connection 2 | M5 | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 8083544 |
Specifications may be subject to change without notice
