Product Model

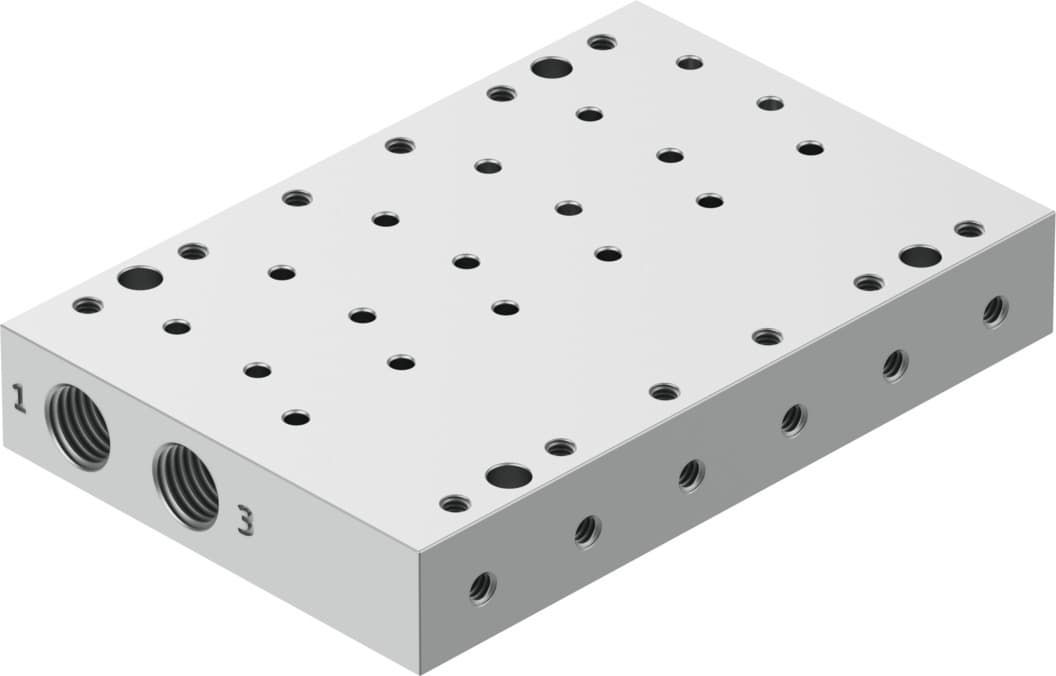

vabm-p6-15mb-g18-m5-6
Selling Points
- 115mm grid dimension for precise valve placement.
- 2Downward connection direction for efficient system design.
- 3Supports up to 6 valve positions for versatile applications.
- 4Moderate corrosion resistance class CRC 2 for durability.
- 5Made from RoHS-compliant wrought aluminium alloy for reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 15mm | Structural design | Connection direction downwards |
Max. no. of valve positions | 6 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Max. tightening torque for valve mounting | 0.6Nm |
Product weight | 210g | Pneumatic connection 1 | G1/8 |
Pneumatic connection 2 | M5 | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 8083546 |
Specifications may be subject to change without notice
