Product Model

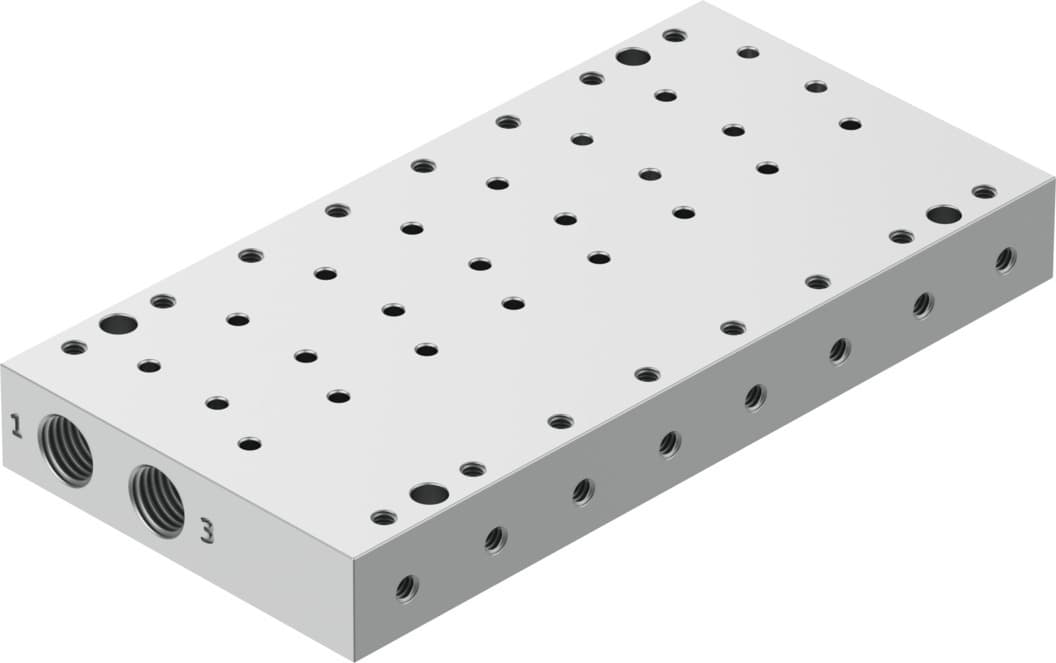

vabm-p6-15mb-g18-m5-8
Selling Points
- 115mm Grid Dimension: Compact design for efficient system integration.
- 28 Valve Positions: Supports multiple pneumatic functions in one rail.
- 3Moderate Corrosion Resistance: CRC 2 classification ensures durability in various environments.
- 40.6 Nm Tightening Torque: Easy and secure valve mounting.
- 5RoHS-Compliant Materials: Made from wrought aluminum alloy for environmental sustainability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 15mm | Structural design | Connection direction downwards |
Max. no. of valve positions | 8 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Max. tightening torque for valve mounting | 0.6Nm |
Product weight | 280g | Pneumatic connection 1 | G1/8 |
Pneumatic connection 2 | M5 | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 8083548 |
Specifications may be subject to change without notice
