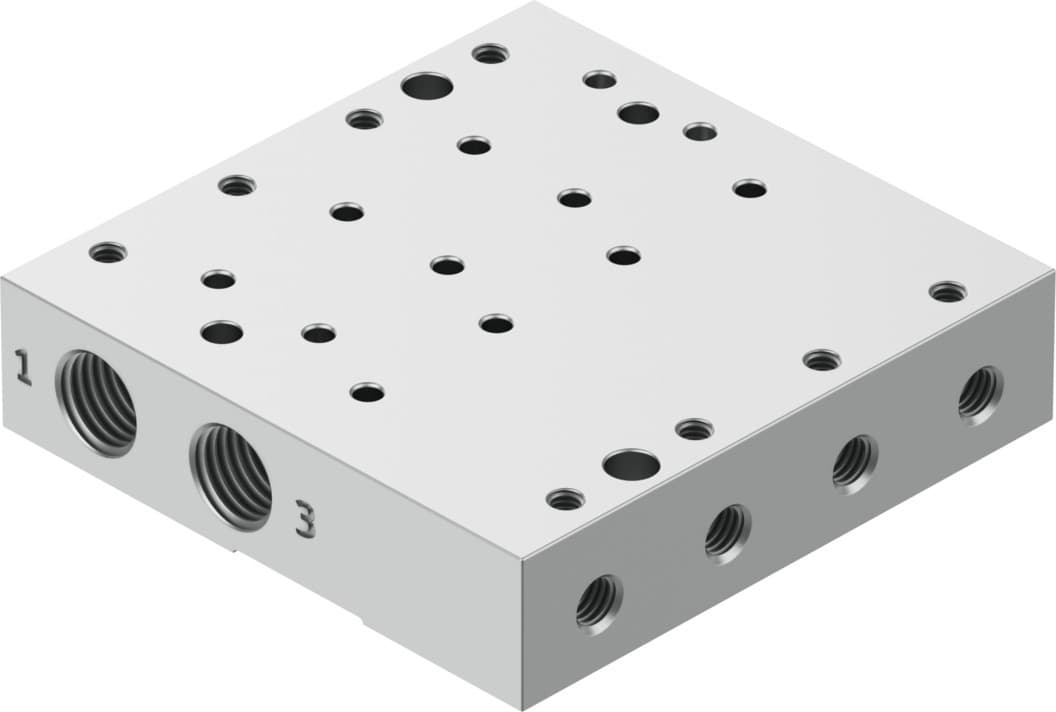

Product Model
vabm-p6-15m-g18-m5-4
Selling Points
- 115mm grid dimension for efficient use in tight spaces.
- 2Made from RoHS-compliant wrought aluminum alloy for durability.
- 3Pneumatic connections include G1/8 and M5 ports.
- 4Moderate corrosion stress resistance (CRC 2) ensures long-lasting performance.
- 5Max. tightening torque of 0.6 Nm simplifies valve mounting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 15mm | Structural design | Connection direction at side |
Max. no. of valve positions | 4 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Max. tightening torque for valve mounting | 0.6Nm |
Product weight | 140g | Pneumatic connection 1 | G1/8 |
Pneumatic connection 2 | M5 | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 8083543 |
Specifications may be subject to change without notice
