Product Model

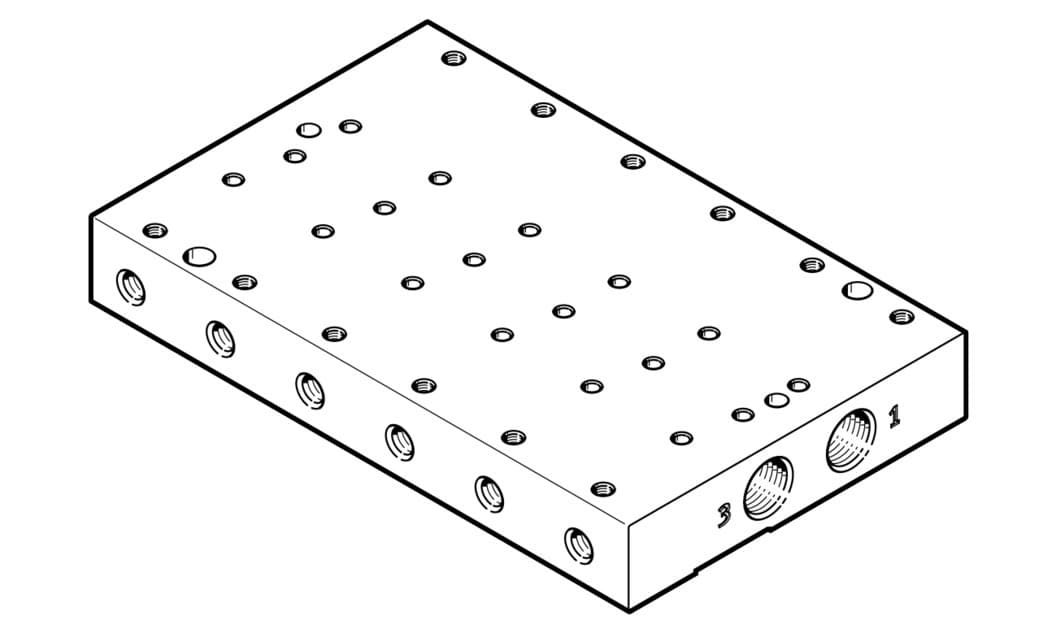

vabm-p7-18mb-g18-m5-6
Selling Points
- 1The VABM-P7-18MB-G18-M5-6 offers reliable G1/8 and M5 pneumatic connections for precise fluid management.
- 2With a corrosion resistance class of 2, this manifold rail is designed to withstand moderate corrosion stress.
- 3Measuring 18 mm in width and 270 grams in weight, it is ideal for space-constrained applications.
- 4The maximum tightening torque for valve mounting is 0.6 Nm, ensuring easy and secure installation.
- 5Made from RoHS-compliant wrought aluminum alloy, this product meets environmental standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 18mm | Structural design | Connection direction downwards |
Max. no. of valve positions | 6 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Max. tightening torque for valve mounting | 0.6Nm |
Product weight | 270g | Pneumatic connection 1 | G1/8 |
Pneumatic connection 2 | M5 | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 8076389 |
Specifications may be subject to change without notice
