Product Model

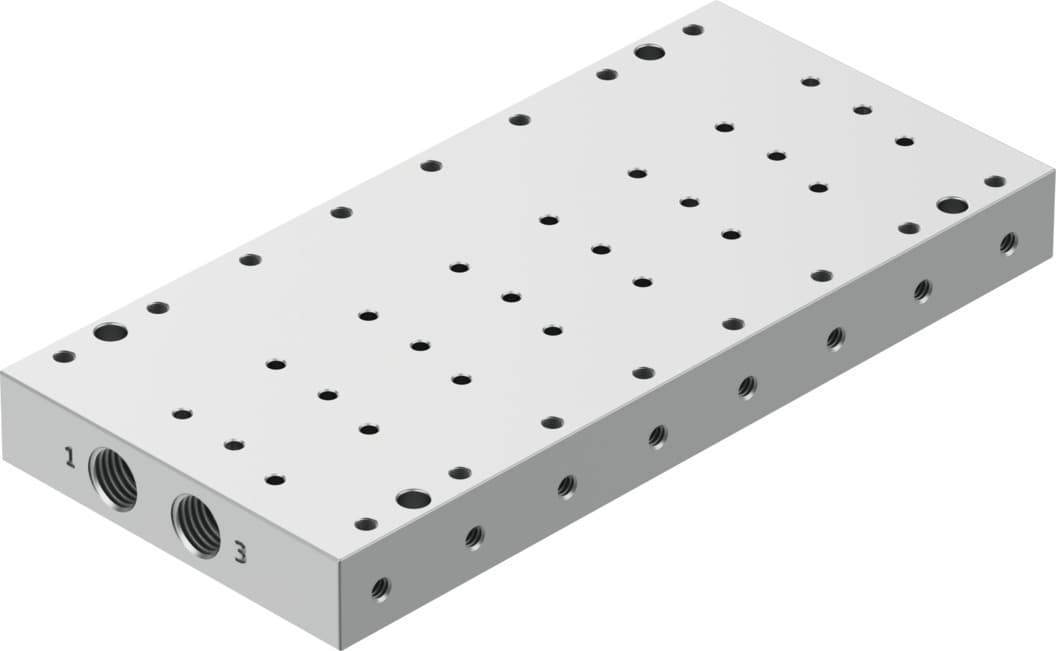

vabm-p7-18mb-g18-m5-8
Selling Points
- 1Built with wrought aluminum alloy for durability and resistance to moderate corrosion stress.
- 2Equipped with G1/8 and M5 pneumatic connections for precise fluid management.
- 3Connection direction downwards allows for efficient valve positioning and operation.
- 4Max. tightening torque for valve mounting is 0.6 Nm, ensuring secure valve attachment.
- 5Grid dimension is 18 mm, making it ideal for space-constrained industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 18mm | Structural design | Connection direction downwards |
Max. no. of valve positions | 8 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Max. tightening torque for valve mounting | 0.6Nm |
Product weight | 360g | Pneumatic connection 1 | G1/8 |
Pneumatic connection 2 | M5 | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 8076391 |
Specifications may be subject to change without notice
