Product Model

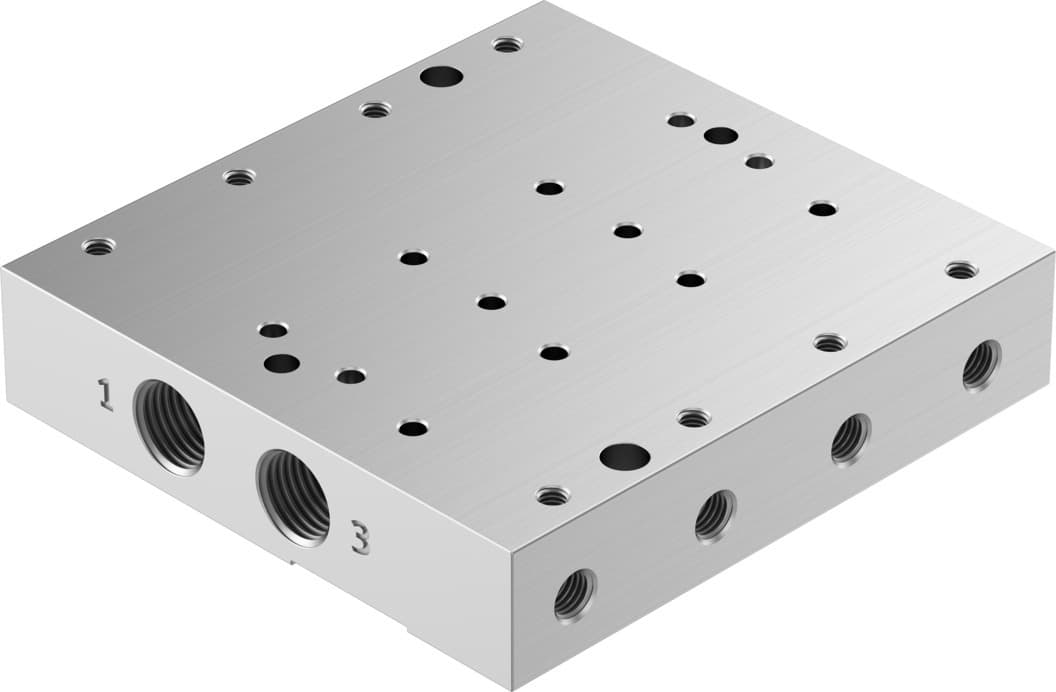

vabm-p7-18m-g18-m5-4
Selling Points
- 118mm grid dimension for precise pneumatic system integration.
- 2Made from wrought aluminum alloy for durability and corrosion resistance.
- 3Pneumatic connections include G1/8 and M5 ports for flexible system setup.
- 4Max. tightening torque of 0.6 Nm for easy and secure valve mounting.
- 5RoHS-compliant and LABS (PWIS) conformity for high-quality standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 18mm | Structural design | Connection direction at side |
Max. no. of valve positions | 4 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Max. tightening torque for valve mounting | 0.6Nm |
Product weight | 180g | Pneumatic connection 1 | G1/8 |
Pneumatic connection 2 | M5 | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 8076386 |
Specifications may be subject to change without notice
