Product Model

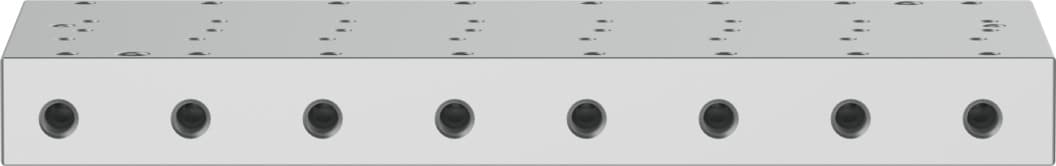

vabm-p7-18m-g18-m5-8
Selling Points
- 118mm Grid Dimension: Ideal for precise valve positioning.
- 28 Valve Positions: Supports multiple pneumatic connections.
- 3Corrosion Resistance Class KBK 2: Moderate corrosion stress resistance.
- 40.6Nm Max. Tightening Torque: Secure valve mounting.
- 5360g Product Weight: Compact and lightweight design.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 18mm | Structural design | Connection direction at side |
Max. no. of valve positions | 8 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Max. tightening torque for valve mounting | 0.6Nm |
Product weight | 360g | Pneumatic connection 1 | G1/8 |
Pneumatic connection 2 | M5 | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 8076390 |
Specifications may be subject to change without notice
