Product Model

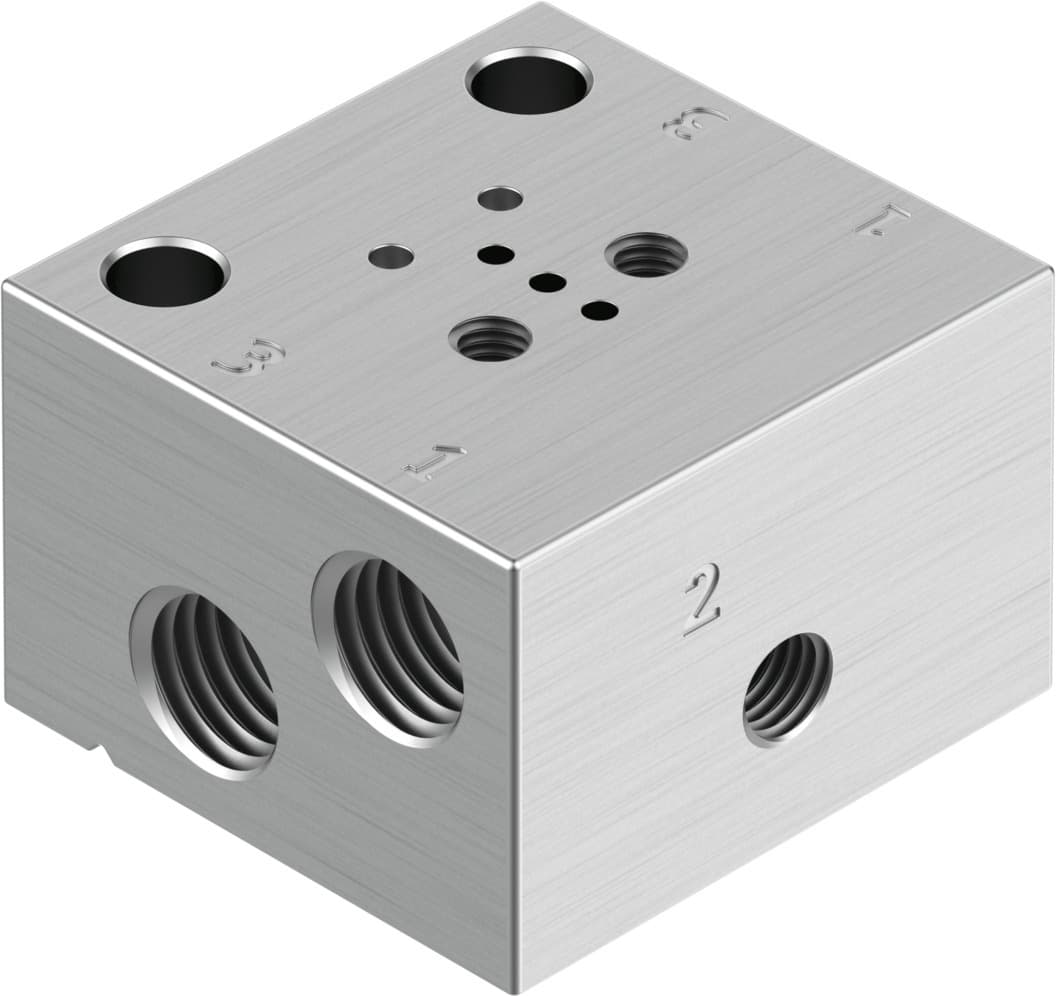

vabs-c12-6-b-m3
Selling Points
- 1Compact design with a width of 20 mm for easy integration.
- 2Operating pressure range of -0.1 to 0.7 MPa for versatile applications.
- 3Connection direction downwards for efficient piping.
- 4Compliant with ISO 8573-1:2010 for compressed air quality.
- 5Made from RoHS-compliant wrought aluminum alloy for durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 20mm | Mounting position | Any |
Structural design | Connection direction downwards | Max. no. of valve positions | 1 |
Operating pressure | -1bar 7bar | Operating medium | Compressed air to ISO 8573-1:2010 [6:4:1] |
Information on operating and pilot media | Maximum particle size 5 μm | LABS (PWIS) conformity | VDMA24364 zone III |
Ambient temperature | 5°C 50°C | Product weight | 13.5g |
Type of mounting | With through-hole | Pneumatic connection 1 | M5 |
Pneumatic connection 2 | M3 | Pneumatic connection 3 | M5 |
Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
Manufacturer ID | 8122793 |
Specifications may be subject to change without notice
