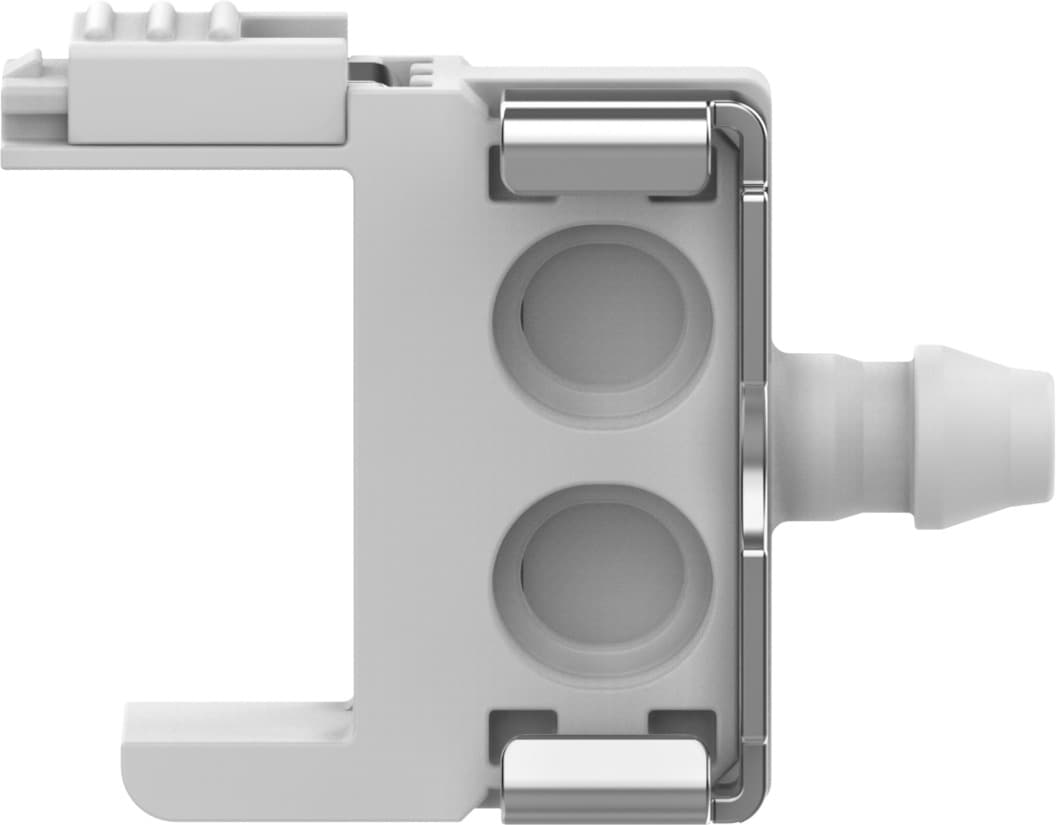

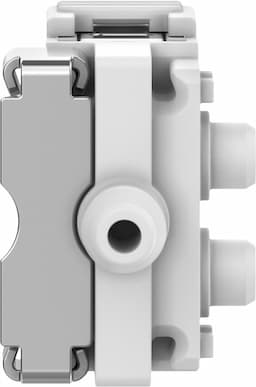

Product Model
vabs-c12-6-s-b3
Selling Points
- 1Compact design with a width of 6 mm.
- 2Versatile mounting position, suitable for any assembly.
- 3Side connection direction for easy integration.
- 4Operates under -0.1 MPa to 0.7 MPa pressure.
- 5Compliant with ISO 8573-1:2010 for compressed air quality.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 6mm | Mounting position | Any |
Structural design | Connection direction at side | Max. no. of valve positions | 1 |
Operating pressure | -1bar 7bar | Operating medium | Compressed air to ISO 8573-1:2010 [6:4:1] |
Information on operating and pilot media | Maximum particle size 5 μm | LABS (PWIS) conformity | VDMA24364 zone III |
Ambient temperature | 5°C 50°C | Product weight | 1.1g |
Type of mounting | With through-hole | Pneumatic connection 2 | For tubing I.D. 2 mm |
Note on materials | RoHS-compliant | Manifold rail material | PBT |
Manufacturer ID | 8122792 |
Specifications may be subject to change without notice
