Product Model

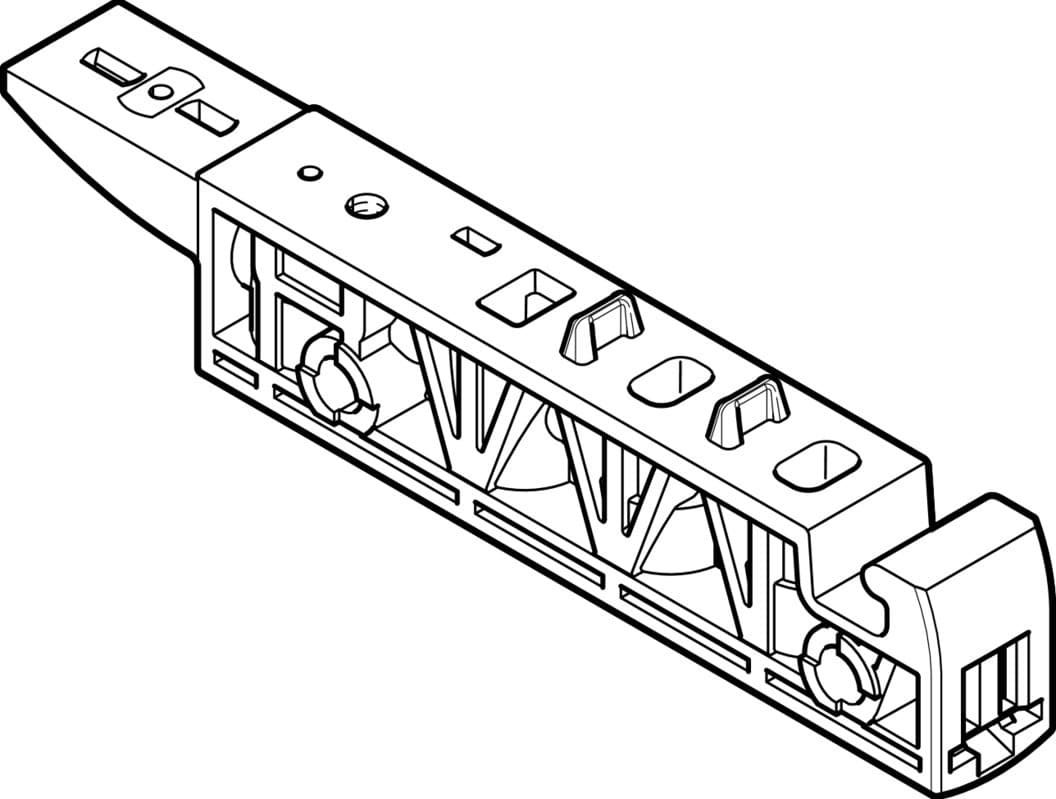

vabs-c8-12xb-qx
Selling Points
- 1The VABS-C8-12XB-QX sub-base features a construction width of 12 mm, making it compact and versatile for various pneumatic setups.
- 2With a maximum of one valve position, this sub-base is ideal for simple yet efficient pneumatic systems, ensuring precise control and minimal complexity.
- 3The sub-base boasts a corrosion resistance class of CRC 0, indicating no risk of corrosion, ensuring long-lasting performance in harsh environments.
- 4The VABS-C8-12XB-QX is designed for easy installation, with a maximum tightening torque for valve mounting ranging from 0.48 to 0.72 Nm and 1.3 Nm for wall mounting, making it quick to set up.
- 5This sub-base is prepared for cartridge connections at ports 1, 3, and 5, providing flexibility in pneumatic system configurations and easy integration with other Festo components.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 12mm | Max. no. of valve positions | 1 |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Max. tightening torque for valve mounting | 0.48Nm 0.72Nm | Max. tightening torque for wall mounting | 1.3Nm |
Product weight | 15g | Pilot air port 12/14 | Prepared for cartridge |
Pneumatic connection 1 | Prepared for cartridge | Pneumatic connection 3 | Prepared for cartridge |
Pneumatic connection 5 | Prepared for cartridge | Note on materials | RoHS-compliant |
Manifold rail material | PA-reinforced | Manufacturer ID | 1236027 |
Specifications may be subject to change without notice
