Product Model
vabs-c8-12xb-qx-db
Selling Points

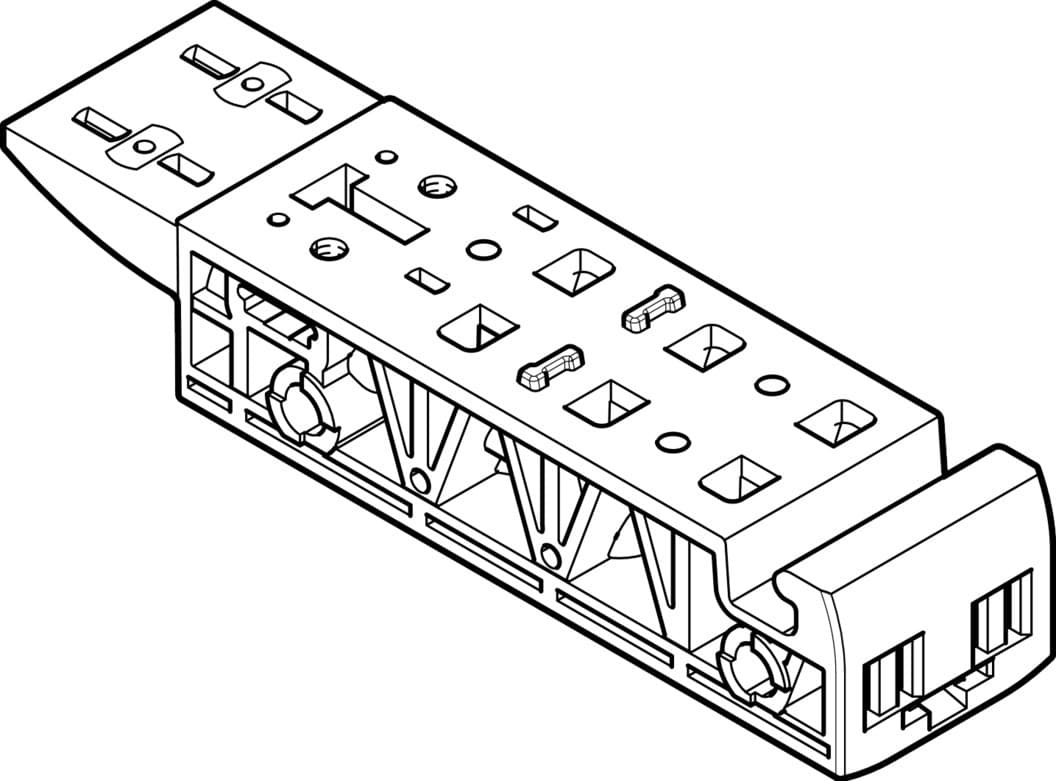

- 1The Festo VABS-C8-12XB-QX-DB is a high-quality pneumatic sub-base designed for use with valve terminal VTSA, ensuring precise and reliable operation in various industrial applications.
- 2This sub-base features a PA-reinforced manifold rail, providing excellent durability and resistance to corrosion, making it a long-lasting solution for your pneumatic systems.
- 3With a width of 24 mm and a maximum number of valve positions at 1, the VABS-C8-12XB-QX-DB offers a compact and efficient design that simplifies your pneumatic setup.
- 4The sub-base is RoHS-compliant, ensuring it meets the highest standards of environmental sustainability and safety in industrial automation.
- 5The product has a low weight of 30 grams and is prepared for cartridge connections at ports 1, 3, and 5, making it easy to integrate into your existing pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 24mm | Max. no. of valve positions | 1 |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Max. tightening torque for valve mounting | 0.48Nm 0.72Nm | Max. tightening torque for wall mounting | 1.3Nm |
Product weight | 30g | Pilot air port 12/14 | Prepared for cartridge |
Pneumatic connection 1 | Prepared for cartridge | Pneumatic connection 3 | Prepared for cartridge |
Pneumatic connection 5 | Prepared for cartridge | Note on materials | RoHS-compliant |
Manifold rail material | PA-reinforced | Manufacturer ID | 1236028 |
Specifications may be subject to change without notice
