Product Model

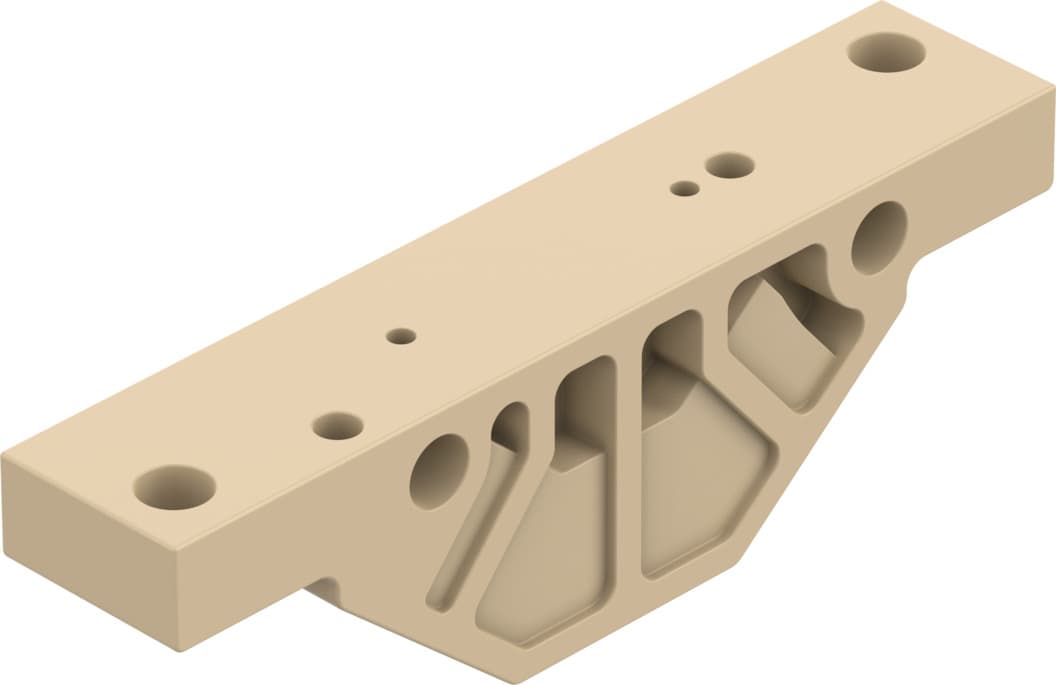

vabs-k2-10b-16-m6-p
Selling Points
- 1Compact Design: 10mm size with a nominal width of 1.6mm for space-efficient mounting.
- 2Versatile Mounting: Compatible with any mounting position, offering flexibility in installation.
- 3Non-Reversible Flow: Ensures consistent operation with non-reversible flow direction.
- 4Corrosion Resistance: No corrosion stress with a corrosion resistance class of 0 (CRC).
- 5Durable Material: Made from RoHS-compliant PEEK material for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 10 | Nominal width | 1.6mm |
Fluid connector | Internal thread M6 | Mounting position | Any |
Structural design | Connection direction downwards | Max. no. of valve positions | 1 |
Flow direction | Non-reversible | Operating medium | Liquid media Gaseous media |
Information on operating and pilot media | Observe resistance of materials that come into contact with media | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364 zone III | Storage temperature | -20°C 70°C |
Temperature of medium | 0°C 50°C | Ambient temperature | 0°C 50°C |
Max. tightening torque for valve mounting | 0.2Nm | Product weight | 7g |
Sub-base mounting type | With through-hole | Pneumatic valve mounting type | With internal thread |
Note on materials | RoHS-compliant | Material of sub-base | PEEK |
Manufacturer ID | 8122825 |
Specifications may be subject to change without notice
