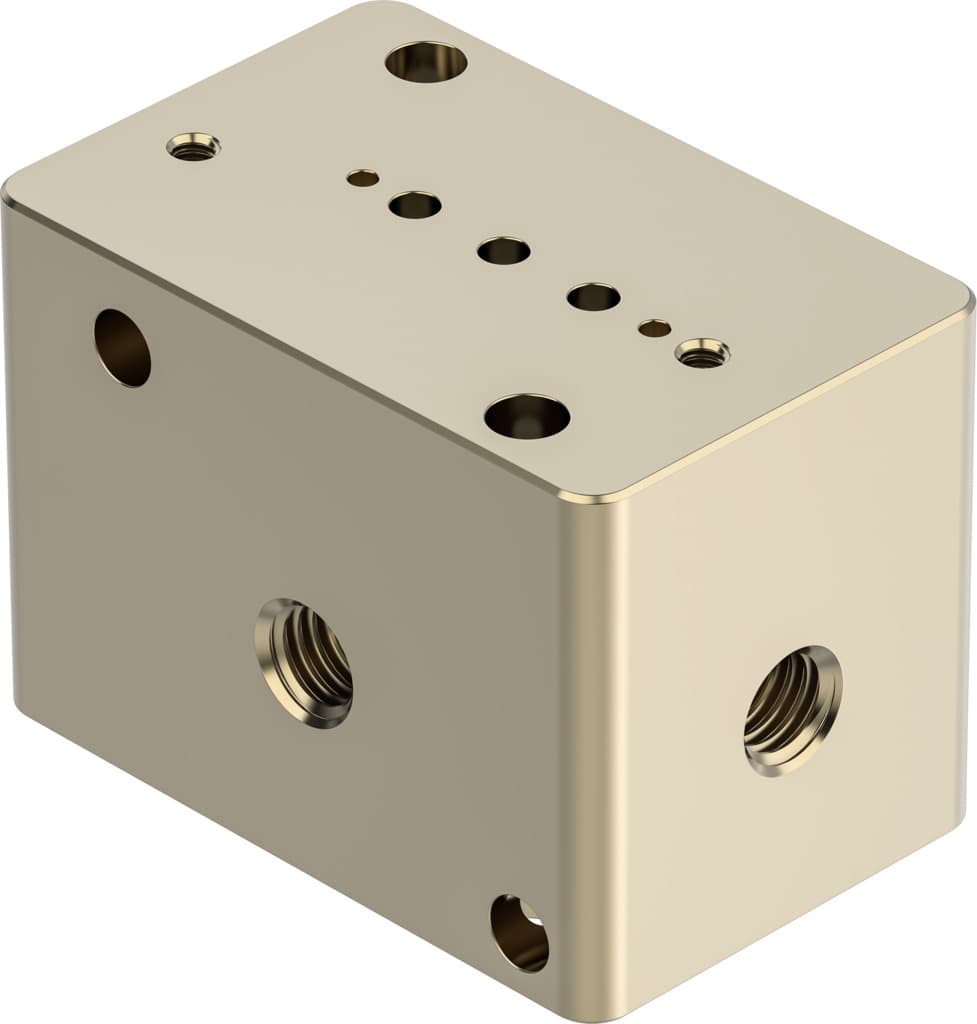

VABS-K2-10S-16-M5-P: High-Quality Pneumatic Valve Subbase by Festo

Selling Points

1The VABS-K2-10S-16-M5-P pneumatic valve subbase from Festo offers a compact size of 10 mm, making it suitable for a wide range of industrial applications where space is limited.
2This subbase features an internal thread M6 for fluid connection, ensuring reliable and efficient operation in both liquid and gaseous media environments.
3The VABS-K2-10S-16-M5-P subbase is designed for any mounting position, providing flexibility in system integration and easy installation.
4With a maximum tightening torque of 0.2 Nm, this subbase ensures secure and precise valve mounting, minimizing the risk of mechanical failure.
5The product is made from RoHS-compliant materials and has a corrosion resistance class of 0, ensuring durability and long-term performance in various operating conditions.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	10	Nominal width	1.6mm
Valve size	10mm	Fluid connector	Internal thread M5
Mounting position	Any	Structural design	Connection direction at side
Max. no. of valve positions	1	Flow direction	Non-reversible
Operating medium	Liquid media Gaseous media	Information on operating and pilot media	Observe resistance of materials that come into contact with media
Corrosion resistance class (CRC)	0 - No corrosion stress	LABS (PWIS) conformity	VDMA24364 zone III
Storage temperature	-20°C 70°C	For use in the food industry	See supplementary material information
Temperature of medium	0°C 50°C	Ambient temperature	0°C 50°C
Max. tightening torque for valve mounting	0.2Nm	Max. tightening torque of pneumatic fitting	1Nm
Max. tightening torque	0.6Nm	Product weight	20g
Sub-base mounting type	With through-hole	Pneumatic valve mounting type	With internal thread
Note on materials	RoHS-compliant	Material of sub-base	PEEK
Manufacturer ID	8186875

Specifications may be subject to change without notice
