Product Model

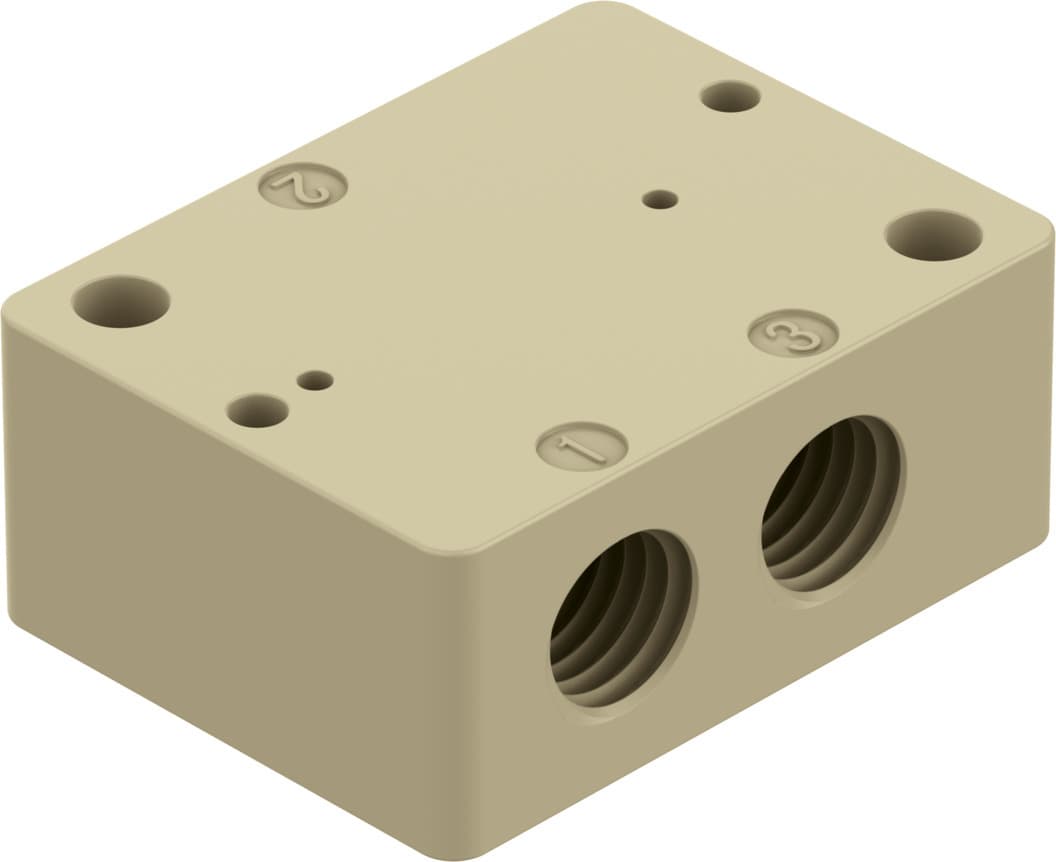

vabs-k2-10s-16-m6-p
Selling Points
- 1The VABS-K2-10S-16-M6-P sub-base is designed with a nominal size of 1.6 mm, making it perfect for space-constrained applications.
- 2Available for mounting in any position, this sub-base offers flexibility in installation.
- 3With a corrosion resistance class of CRC 0, it ensures durability in harsh environments.
- 4The non-reversible flow direction ensures consistent and reliable operation.
- 5Made from RoHS-compliant PEEK material, it meets high standards of quality and sustainability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 10 | Nominal width | 1.6mm |
Fluid connector | Internal thread M6 | Mounting position | Any |
Structural design | Connection direction at side | Max. no. of valve positions | 1 |
Flow direction | Non-reversible | Operating medium | Liquid media Gaseous media |
Information on operating and pilot media | Observe resistance of materials that come into contact with media | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364 zone III | Storage temperature | -20°C 70°C |
Temperature of medium | 0°C 50°C | Ambient temperature | 0°C 50°C |
Max. tightening torque for valve mounting | 0.2Nm | Max. tightening torque | 0.6Nm |
Product weight | 7g | Sub-base mounting type | With through-hole |
Pneumatic valve mounting type | With internal thread | Note on materials | RoHS-compliant |
Material of sub-base | PEEK | Manufacturer ID | 8122827 |
Specifications may be subject to change without notice
