Product Model
vabs-k2-12s-20-g18-p
Selling Points

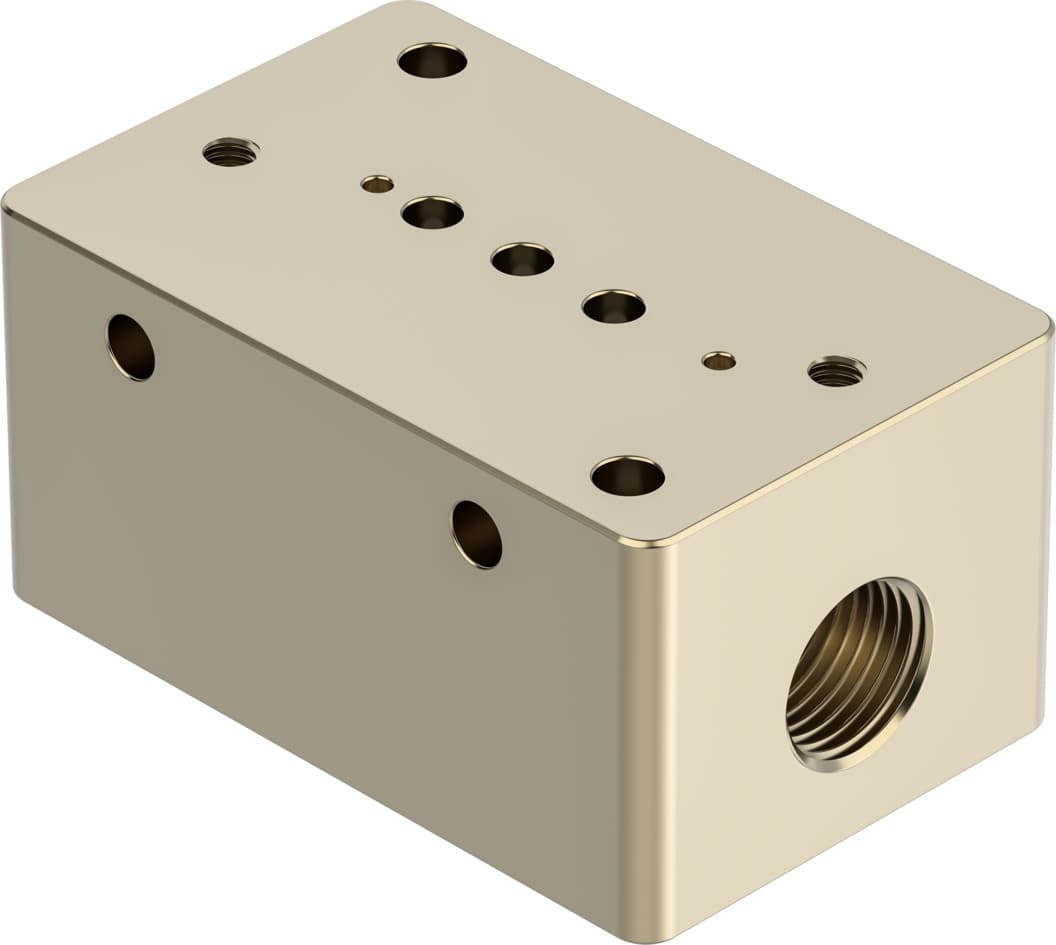

- 1The Festo VABS-K2-12S-20-G18-P sub-base valve offers high performance and versatility in pneumatic systems, making it suitable for a wide range of applications.
- 2This valve features a non-reversible flow direction, ensuring consistent operation and reliability in your pneumatic setup.
- 3Designed for use in the food industry, the VABS-K2-12S-20-G18-P meets stringent cleanliness and corrosion resistance standards, ensuring safe operation.
- 4With a compact size and lightweight design (31 grams), the VABS-K2-12S-20-G18-P is easy to integrate into your existing system without adding bulk.
- 5The valve is RoHS-compliant and has a corrosion resistance class of 0, ensuring no corrosion stress and maintaining its performance over time.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 12 | Nominal width | 2mm |
Valve size | 12mm | Fluid connector | Internal thread G1/8 |
Mounting position | Any | Structural design | Connection direction at side |
Max. no. of valve positions | 1 | Flow direction | Non-reversible |
Operating medium | Liquid media Gaseous media | Information on operating and pilot media | Observe resistance of materials that come into contact with media |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
Storage temperature | -20°C 70°C | For use in the food industry | See supplementary material information |
Temperature of medium | 0°C 50°C | Ambient temperature | 0°C 50°C |
Max. tightening torque for valve mounting | 0.33Nm | Max. tightening torque of pneumatic fitting | 7Nm |
Max. tightening torque | 0.6Nm | Product weight | 31g |
Sub-base mounting type | With through-hole | Pneumatic valve mounting type | With internal thread |
Note on materials | RoHS-compliant | Material of sub-base | PEEK |
Manufacturer ID | 8186871 |
Specifications may be subject to change without notice
