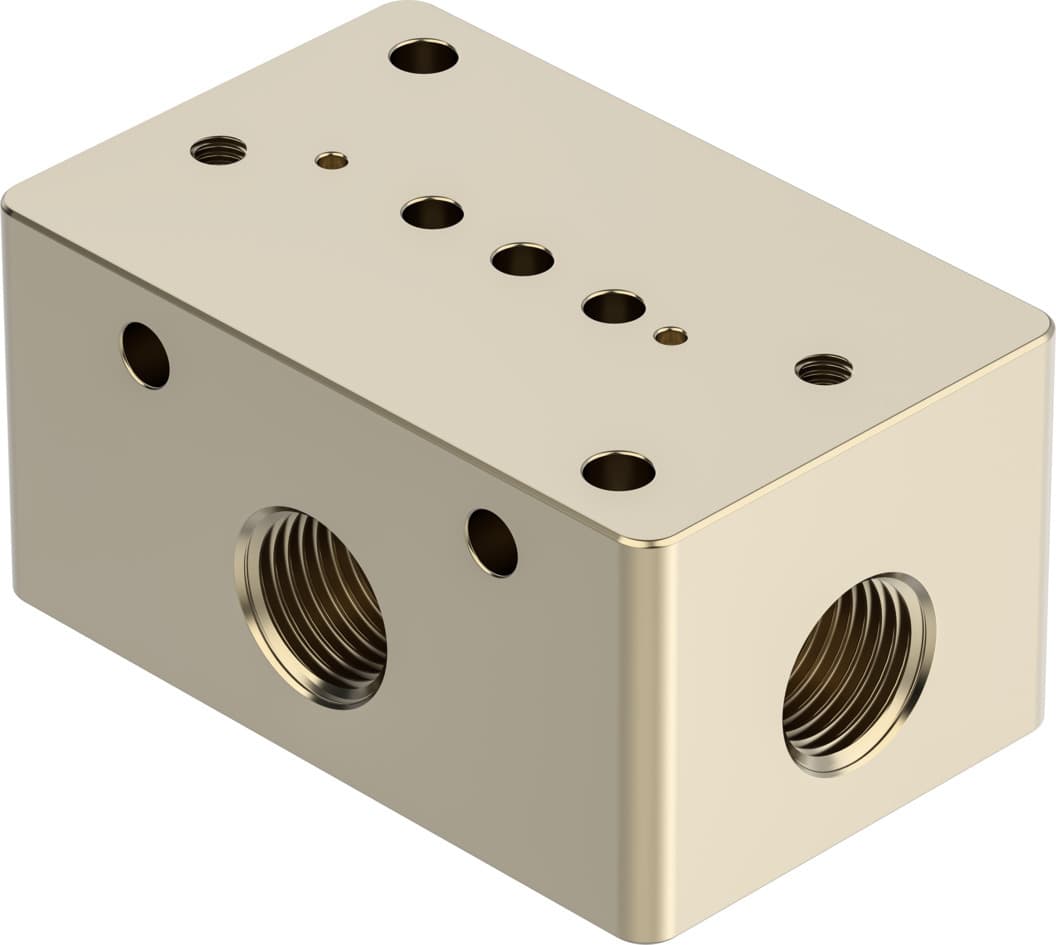

Product Model
vabs-k2-12s-20-n18-p
Selling Points
- 1The VABS-K2-12S-20-N18-P solenoid valve offers high flow rates of 0.056 m³/h, making it suitable for demanding industrial applications.
- 2This valve can be mounted with ports underneath or at the side, providing flexibility in system integration.
- 3Built with sturdy metal components and a diaphragm seal, the VABS-K2-12S-20-N18-P ensures durability and reliability in harsh environments.
- 4The valve features a simple mounting process with through-holes for M2 or M3 screws, facilitating quick installation in various settings.
- 5Equipped with an EPDM diaphragm, this valve offers excellent sealing performance and resistance to corrosion, ensuring consistent operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 12 | Nominal width | 2mm |
Valve size | 12mm | Fluid connector | Internal thread 1/8 NPT |
Mounting position | Any | Structural design | Connection direction at side |
Max. no. of valve positions | 1 | Flow direction | Non-reversible |
Operating medium | Liquid media Gaseous media | Information on operating and pilot media | Observe resistance of materials that come into contact with media |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
Storage temperature | -20°C 70°C | For use in the food industry | See supplementary material information |
Temperature of medium | 0°C 50°C | Ambient temperature | 0°C 50°C |
Max. tightening torque for valve mounting | 0.33Nm | Max. tightening torque of pneumatic fitting | 7Nm |
Max. tightening torque | 0.6Nm | Product weight | 31g |
Sub-base mounting type | With through-hole | Pneumatic valve mounting type | With internal thread |
Note on materials | RoHS-compliant | Material of sub-base | PEEK |
Manufacturer ID | 8186870 |
Specifications may be subject to change without notice
