Product Model

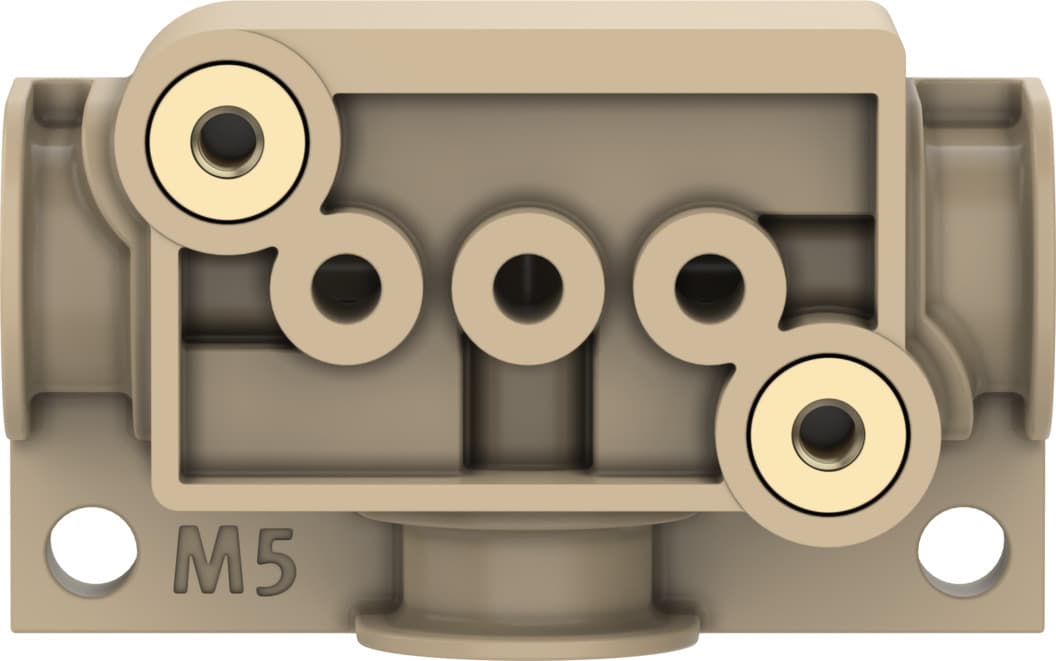

vabs-k3-16s-20-m5-p
Selling Points
- 1The VABS-K3-16S-20-M5-P solenoid valve offers precise control over fluid flow, ensuring reliable operation in a variety of applications.
- 2With a nominal size of 12 mm, this valve is designed to be compact and space-efficient, making it suitable for use in tight spaces.
- 3Built with durable materials, the VABS-K3-16S-20-M5-P valve ensures long-lasting performance and resistance to wear and tear.
- 4Equipped with a female thread M6 and a port at the side, this valve provides flexible connection options for easy integration into your system.
- 5Featuring a diaphragm seal with EPDM material, the VABS-K3-16S-20-M5-P valve ensures tight sealing and minimal leakage, enhancing overall system reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 16 | Nominal width | 2mm |
Valve size | 16mm | Fluid connector | Internal thread M5 |
Mounting position | Any | Structural design | Connection direction at side |
Max. no. of valve positions | 1 | Flow direction | Reversible |
Operating medium | Liquid media Gaseous media | Information on operating and pilot media | Observe resistance of materials that come into contact with media |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
Storage temperature | -20°C 70°C | For use in the food industry | See supplementary material information |
Temperature of medium | 0°C 50°C | Ambient temperature | 0°C 50°C |
Max. tightening torque for valve mounting | 0.3Nm | Max. tightening torque of pneumatic fitting | 0.5Nm |
Max. tightening torque | 0.6Nm | Product weight | 9g |
Sub-base mounting type | With through-hole | Pneumatic valve mounting type | With internal thread |
Note on materials | RoHS-compliant | Material of sub-base | PEEK |
Manufacturer ID | 8187601 |
Specifications may be subject to change without notice
