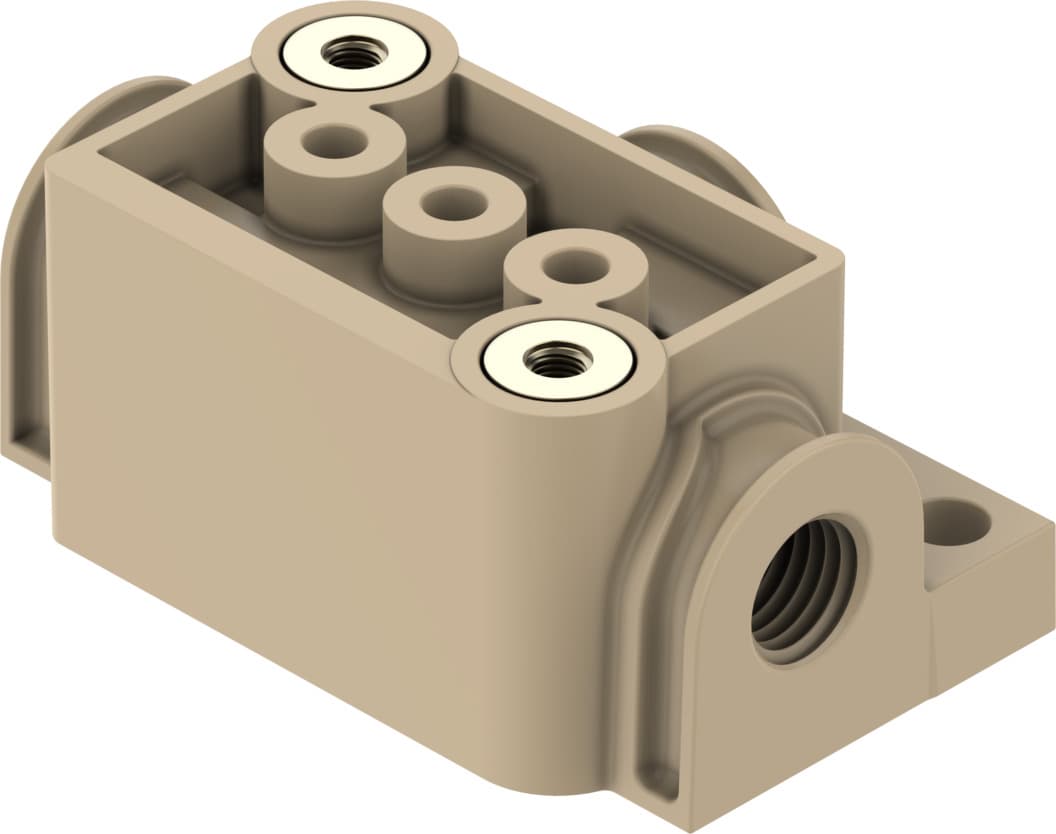

Festo VABS-K3-16S-20-U14-P Sub-base | High-Quality Valve Solutions

Selling Points

1The Festo VABS-K3-16S-20-U14-P sub-base is designed for seamless integration into pneumatic systems, ensuring high precision and reliability in various applications.
2This sub-base features a robust internal thread of 1/4-24 UNF-2A, providing a secure and stable connection for fluid connectors.
3The VABS-K3-16S-20-U14-P is versatile, allowing for mounting in any position, making it easy to adapt to different system configurations.
4With a nominal width of 2 mm and a structural design that includes connection direction at the side, this sub-base offers compact and efficient fluid management.
5The Festo VABS-K3-16S-20-U14-P is built to withstand various environmental conditions, including temperatures from -20°C to 70°C, ensuring consistent performance in diverse settings.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	16	Nominal width	2mm
Valve size	16mm	Fluid connector	Internal thread 1/4-28 UNF-2B
Mounting position	Any	Structural design	Connection direction at side
Max. no. of valve positions	1	Flow direction	Reversible
Operating medium	Liquid media Gaseous media	Information on operating and pilot media	Observe resistance of materials that come into contact with media
Corrosion resistance class (CRC)	0 - No corrosion stress	LABS (PWIS) conformity	VDMA24364 zone III
Storage temperature	-20°C 70°C	For use in the food industry	See supplementary material information
Temperature of medium	0°C 50°C	Ambient temperature	0°C 50°C
Max. tightening torque for valve mounting	0.3Nm	Max. tightening torque of pneumatic fitting	0.5Nm
Max. tightening torque	0.6Nm	Product weight	9g
Sub-base mounting type	With through-hole	Pneumatic valve mounting type	With internal thread
Note on materials	RoHS-compliant	Material of sub-base	PEEK
Manufacturer ID	8187600

Specifications may be subject to change without notice
