Product Model

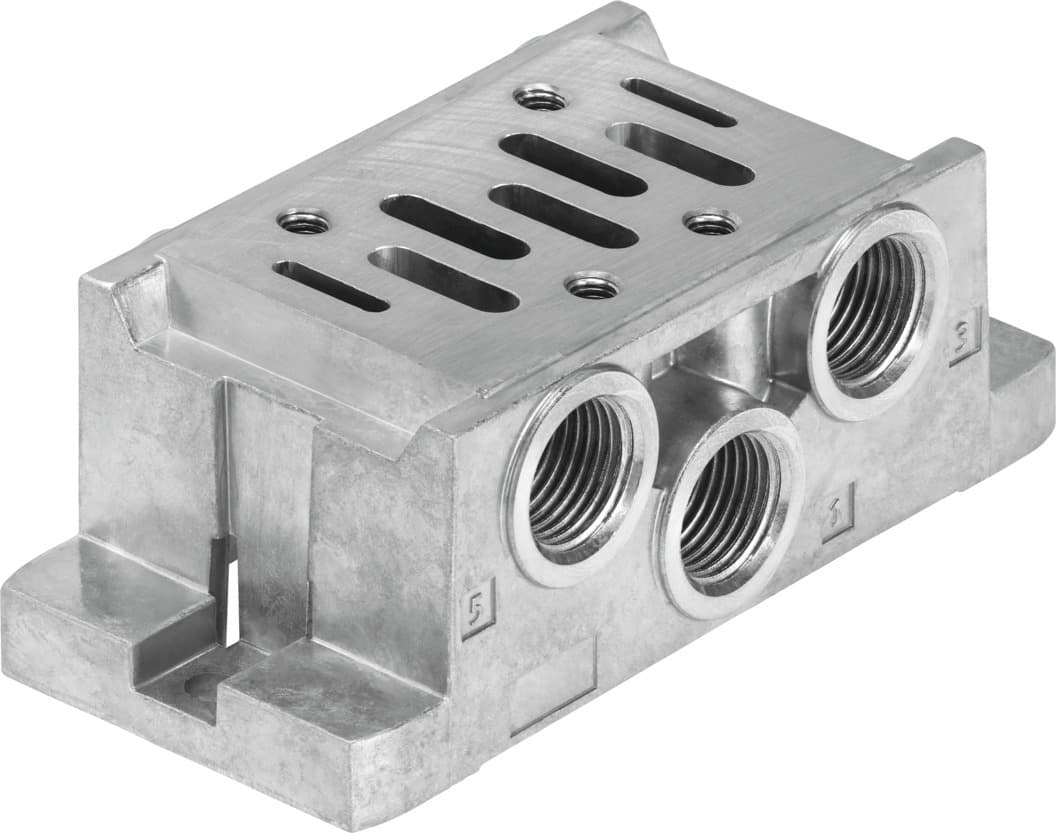

vabs-s1-1s-g38
Selling Points
- 1The VABS-S1-1S-G38 features a corrosion resistance class (CRC)0, ensuring it withstands harsh environments.
- 2Equipped with electrical actuation, this sub-base offers precise control and reliability.
- 3Utilizes a soft sealing principle for smooth and reliable operation.
- 4Can be assembled in any position, providing flexibility in installation.
- 5Measuring 48 mm in width, it fits seamlessly into various pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 48mm | Based on norm | ISO 5599-1 |
Actuation type | Electrical | Sealing principle | Soft |
Mounting position | Any | Operating pressure | 0bar 16bar |
Pilot pressure MPa | 0MPa 1MPa | Pilot pressure | 0bar 10bar |
Suitability for vacuum | yes | CE marking (see declaration of conformity) | As per EU low voltage directive |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Storage temperature | -20°C 60°C | Temperature of medium | -10°C 60°C |
Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -10°C 60°C |
Product weight | 230g | Type of mounting | with through-hole for M5 screw |
Pilot air port 12/14 | G1/8 | Pneumatic connection 1 | G3/8 |
Pneumatic connection 2 | G3/8 | Pneumatic connection 3 | G3/8 |
Pneumatic connection 4 | G3/8 | Pneumatic connection 5 | G3/8 |
Note on materials | RoHS-compliant | Material of sub-base | Die-cast aluminum |
Manufacturer ID | 8032642 |
Specifications may be subject to change without notice
