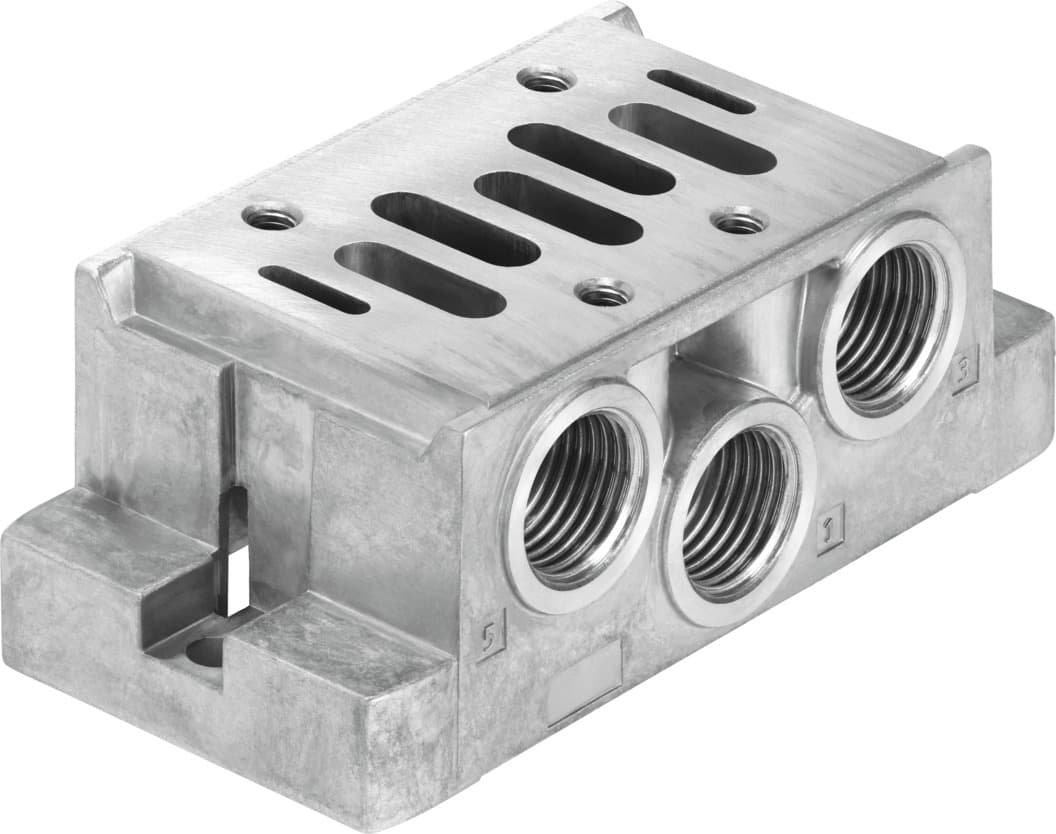

Product Model
vabs-s1-2s-n12
Selling Points
- 1Built with cast aluminum for durability and resistance to corrosion.
- 2Simple mounting with through-hole design and secure fastening.
- 3Operates with compressed air to ISO 8573-1:2010 standards.
- 4Suitable for various mounting positions and configurations.
- 5Designed for reliable operation in a wide range of ambient temperatures (-5 °C to 50 °C).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 58mm | Based on norm | ISO 5599-1 |
Actuation type | Electrical | Sealing principle | Soft |
Mounting position | Any | Operating pressure | 0bar 16bar |
Pilot pressure MPa | 0MPa 1MPa | Pilot pressure | 0bar 10bar |
Suitability for vacuum | yes | CE marking (see declaration of conformity) | As per EU low voltage directive |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Storage temperature | -20°C 60°C | Temperature of medium | -10°C 60°C |
Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -10°C 60°C |
Product weight | 380g | Type of mounting | with through-hole for M6 screw |
Pilot air port 12/14 | 1/8 NPT | Pneumatic connection 1 | 1/2 NPT |
Pneumatic connection 2 | 1/2 NPT | Pneumatic connection 3 | 1/2 NPT |
Pneumatic connection 4 | 1/2 NPT | Pneumatic connection 5 | 1/2 NPT |
Note on materials | RoHS-compliant | Material of sub-base | Die-cast aluminum |
Manufacturer ID | 8032645 |
Specifications may be subject to change without notice
