Product Model
vabs-s2-1s-g38-r3
Selling Points

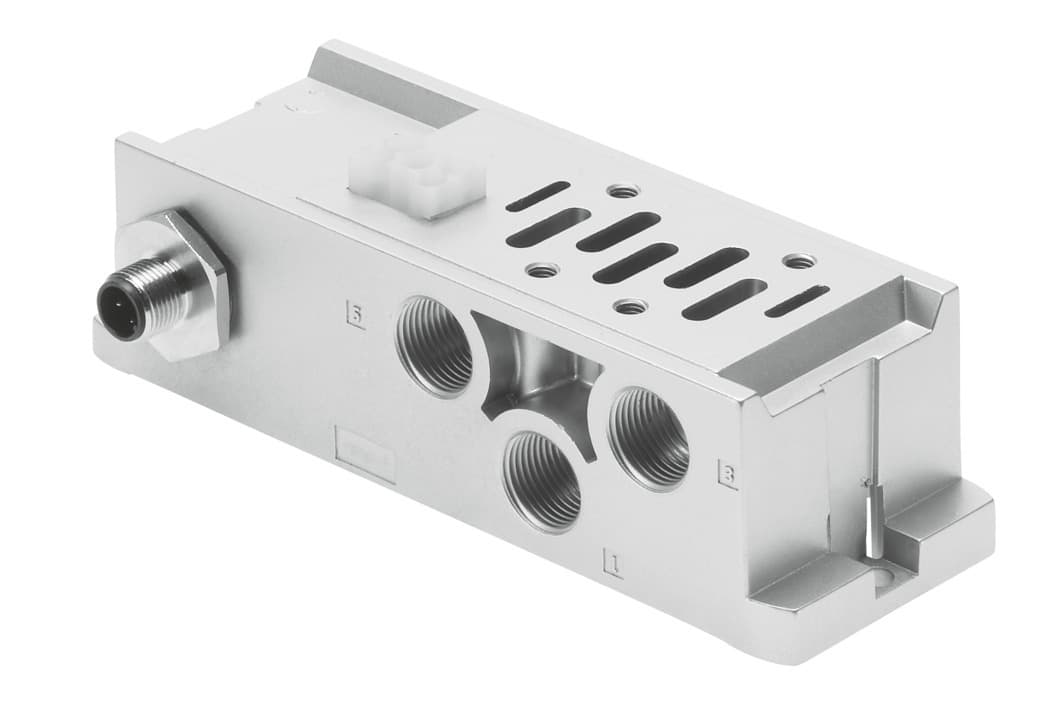

- 1The Festo VABS-S2-1S-G38-R3 sub-base is constructed with die-cast aluminum, ensuring durability and resistance to corrosion.
- 2This sub-base is designed to meet the ISO 5599-2 standard, providing a reliable and consistent pneumatic connection.
- 3The sub-base offers an operating pressure range of -0.09 MPa to 1 MPa, making it versatile for various pneumatic applications.
- 4With an optional mounting position and external pilot air supply, the VABS-S2-1S-G38-R3 offers flexibility in installation and operation.
- 5The sub-base is designed to operate within an ambient temperature range of -5°C to 50°C, ensuring reliable performance in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 42mm | Based on norm | ISO 5599-2 |
Mounting position | Any | Pilot air supply port | External |
Operating pressure | -0.9bar 10bar | DC operating voltage range | 24V |
Surge resistance | 0.8kV | Current rating at 40° C | 2A |
Contamination level | 3 | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 In mounted state |
Ambient temperature | -5°C 50°C | Product weight | 386g |
Type of mounting | With through-hole | Note on materials | RoHS-compliant |
Material of sub-base | Die-cast aluminum | Manufacturer ID | 546101 |
Specifications may be subject to change without notice
