Product Model
vabs-s2-1s-n38-c1
Selling Points

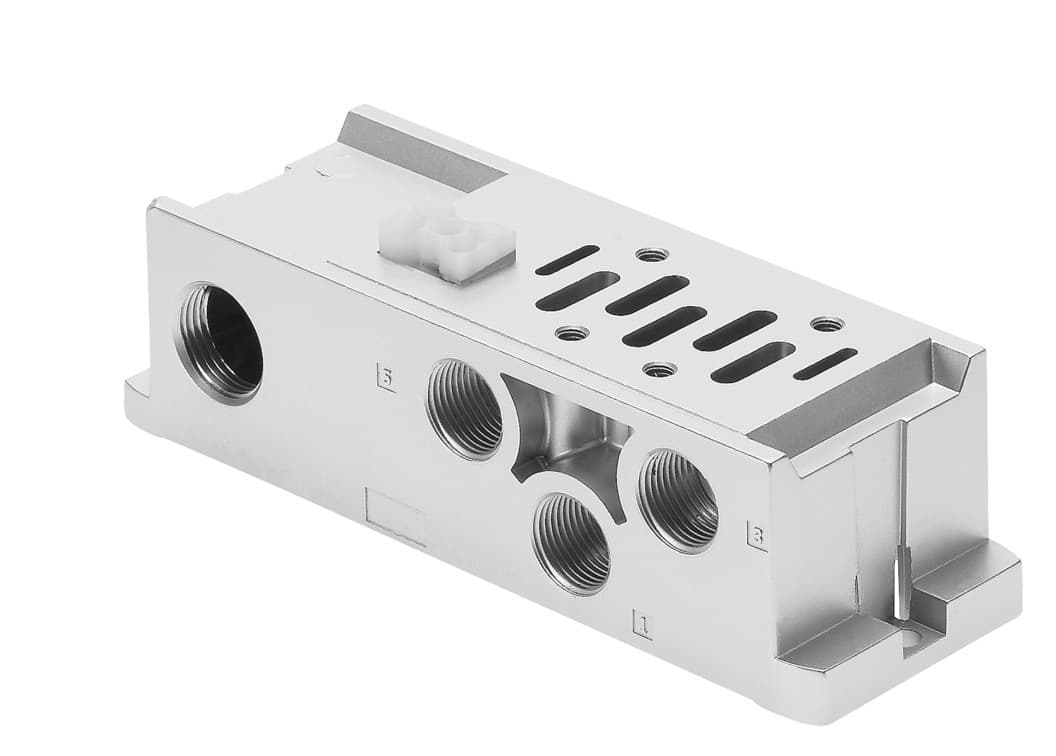

- 1The Festo VABS-S2-1S-N38-C1 sub-base is constructed with a width of 42 mm, adhering to the ISO 5599-2 standard for precise fitment and reliable operation.
- 2This sub-base offers flexible mounting options, allowing for any assembly position, making it versatile for various pneumatic system configurations.
- 3The VABS-S2-1S-N38-C1 features internal pilot air supply, ensuring efficient control and operation within compressed air systems compliant with ISO 8573-1:2010.
- 4With an operating pressure range of -0.9 to 10 bar, this sub-base can handle a wide range of pneumatic applications, from low to high-pressure systems.
- 5The sub-base is designed with IP65 protection and NEMA 4 rating, providing robust protection against dust and water, ensuring reliable performance in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 42mm | Based on norm | ISO 5599-2 |
Mounting position | Any | Pilot air supply port | External |
Operating pressure | -0.9bar 10bar | Operating voltage range AC | 110V |
DC operating voltage range | 24V | Surge resistance | 4kV |
Current rating at 40° C | 2A | Contamination level | 3 |
CE marking (see declaration of conformity) | As per EU low voltage directive | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 In mounted state |
Ambient temperature | -5°C 50°C | Product weight | 371g |
Connection cross section | 0.08mm2 0.75mm2 | Type of mounting | With through-hole |
Note on materials | RoHS-compliant | Material of sub-base | Die-cast aluminum |
Manufacturer ID | 546761 |
Specifications may be subject to change without notice
