Product Model

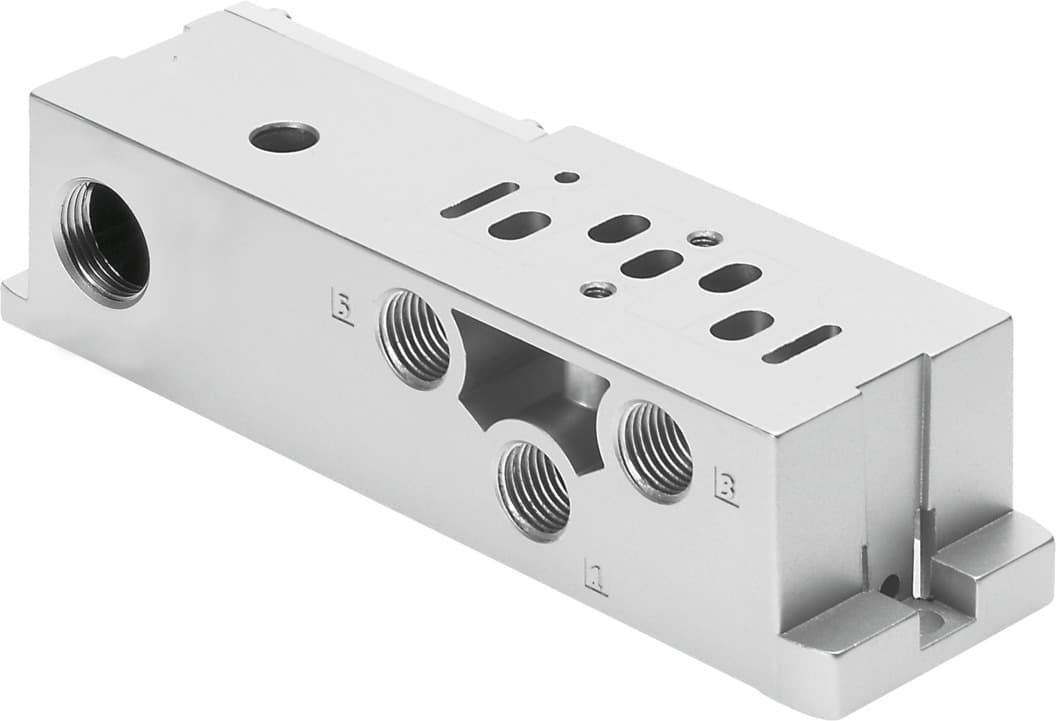

vabs-s4-2s-n18-k2
Selling Points
- 1The Festo VABS-S4-2S-N18-K2 sub-base features a construction width of 18 mm, adhering to the ISO 15407-2 standard for precise mounting and operation.
- 2This sub-base offers optional mounting positions, allowing for flexible installation in various pneumatic system configurations.
- 3It includes an internal pilot air supply, ensuring efficient and reliable operation within a wide operating pressure range of -0.09 MPa to 1 MPa.
- 4The sub-base is designed with a robust DC operational voltage range of 24 V and immunity to surge up to 4 kV, ensuring stable performance in demanding environments.
- 5Compliant with EU and UK regulations, including ATEX and RoHS directives, this sub-base meets stringent safety standards for explosion protection and environmental sustainability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 18mm | Based on norm | ISO 15407-2 |
Mounting position | Any | Pilot air supply port | External |
Operating pressure | -0.9bar 10bar | DC operating voltage range | 24V |
Surge resistance | 4kV | Current rating at 40° C | 2A |
Contamination level | 3 | CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) As per EU low voltage directive As per EU RoHS directive |
UKCA marking (see declaration of conformity) | acc. to UK EX instructions To UK RoHS instructions To UK instructions for electrical equipment | Explosion protection certification outside the EU | EPL Gc (GB) |
Explosion prevention and protection | Zone 2 (ATEX) Zone 2 (UKEX) | ATEX category gas | II 3G |
Type of ignition protection for gas | Ex ec IIC T3 Gc X | Explosion group of assembly | IIC |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Max. surface temperature of assembly | T3 | Degree of protection | IP65 NEMA 4 In mounted state |
Ambient temperature | -5°C 50°C | Product weight | 192g |
Type of mounting | With through-hole as per ISO 15407-2 | Note on materials | RoHS-compliant |
Material of sub-base | Die-cast aluminum | Manufacturer ID | 539724 |
Specifications may be subject to change without notice
