Product Model

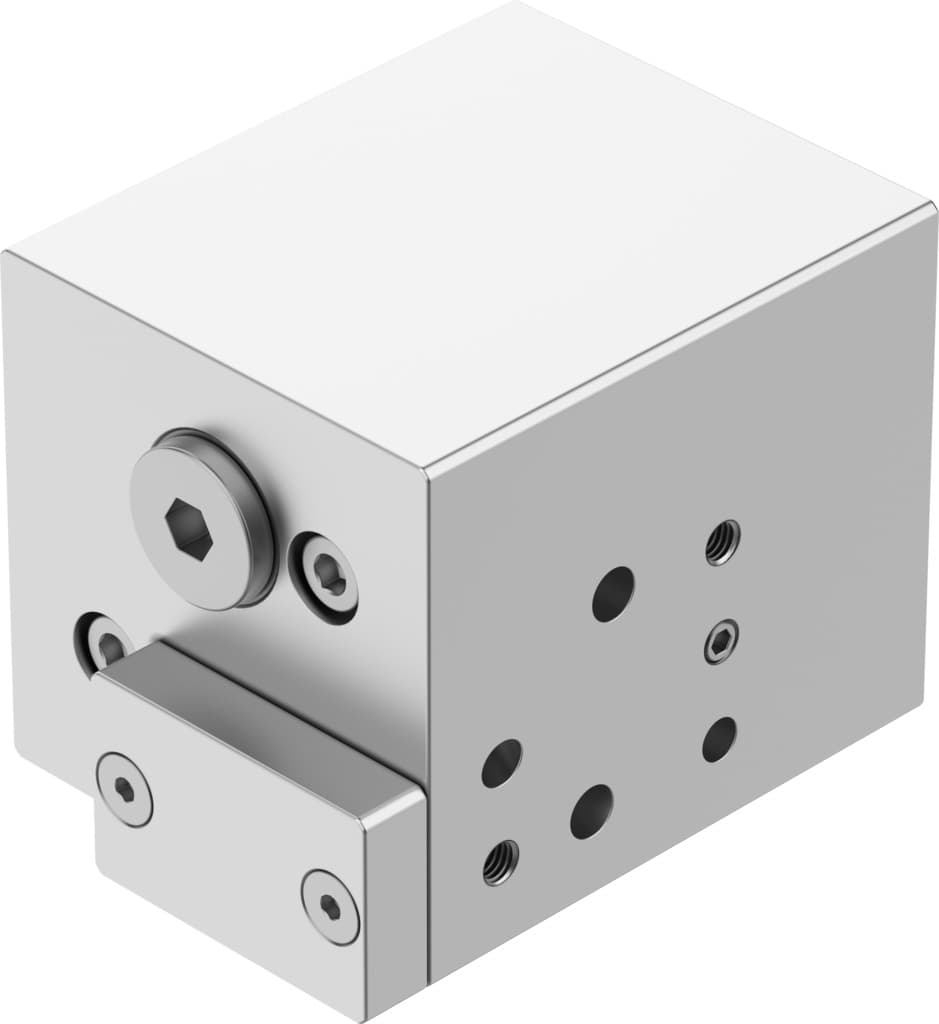

vabs-s7-rb-b-g14-r12
Selling Points
- 1Optional Mounting Position - The VABS-S7-RB-B-G14-VDE1-R12 sub-base offers flexible mounting options, allowing for easy integration into different pneumatic systems.
- 2Internal Pilot Air Supply - This sub-base features an internal pilot air supply, ensuring reliable operation and minimizing external connections.
- 3High Operating Pressure Range - It supports operating pressures from 0 to 1 MPa (0 to 10 bar), making it suitable for a wide range of industrial applications.
- 4Explosion Protection - The sub-base is designed with explosion protection in mind, meeting ATEX Zone 1 and Zone 2 standards for safe operation in hazardous environments.
- 5High Corrosion Resistance - Constructed from ematal coated aluminum with NBR seals, this sub-base offers very high corrosion resistance, ensuring durability in harsh conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Mounting position | Any | Pilot air supply port | External Internal |
Operating pressure | 0bar 10bar | Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] |
Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
Degree of protection | IP65 In mounted state | Product weight | 750g |
Type of mounting | With through-hole | Pilot air port 12 | G1/4 |
Pneumatic connection 1 | G1/4 | Pneumatic connection 2 | Flange 1/4 with NAMUR port pattern |
Pneumatic connection 3 | G1/4 | Note on materials | RoHS-compliant |
Material of sub-base | Aluminum, ematal coated | Seals material | NBR |
Manufacturer ID | 8141067 |
Specifications may be subject to change without notice
