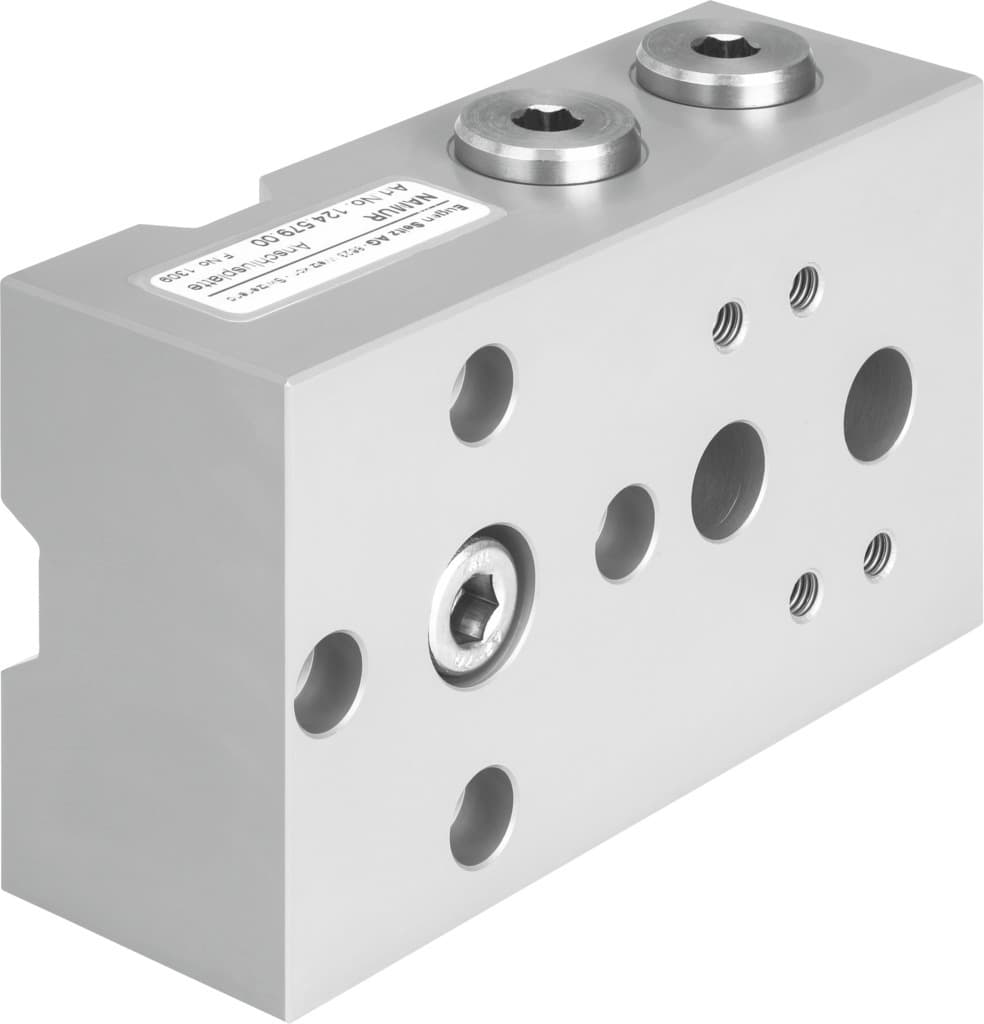

Product Model
vabs-s7-s-g14
Selling Points
- 1Durable aluminum housing with ematal coating for enhanced corrosion resistance.
- 2Equipped with G1/4 and Flange 1/4 pneumatic connections, including NAMUR wiring diagram.
- 3Offers high protection against dust and water, ensuring reliable operation in harsh environments.
- 4Can be mounted in any position, providing flexibility in system design.
- 5Meets RoHS standards, ensuring compliance with environmental regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Mounting position | Any | Operating pressure | 0bar 10bar |
Explosion prevention and protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
Degree of protection | IP65 | Type of mounting | With through-hole |
Pneumatic connection 1 | G1/4 | Pneumatic connection 2 | Flange 1/4 NAMUR connection diagram |
Pneumatic connection 3 | G1/4 | Note on materials | RoHS-compliant |
Seals material | NBR | Plate material | Aluminum, ematal coated |
Manufacturer ID | 563396 |
Specifications may be subject to change without notice
