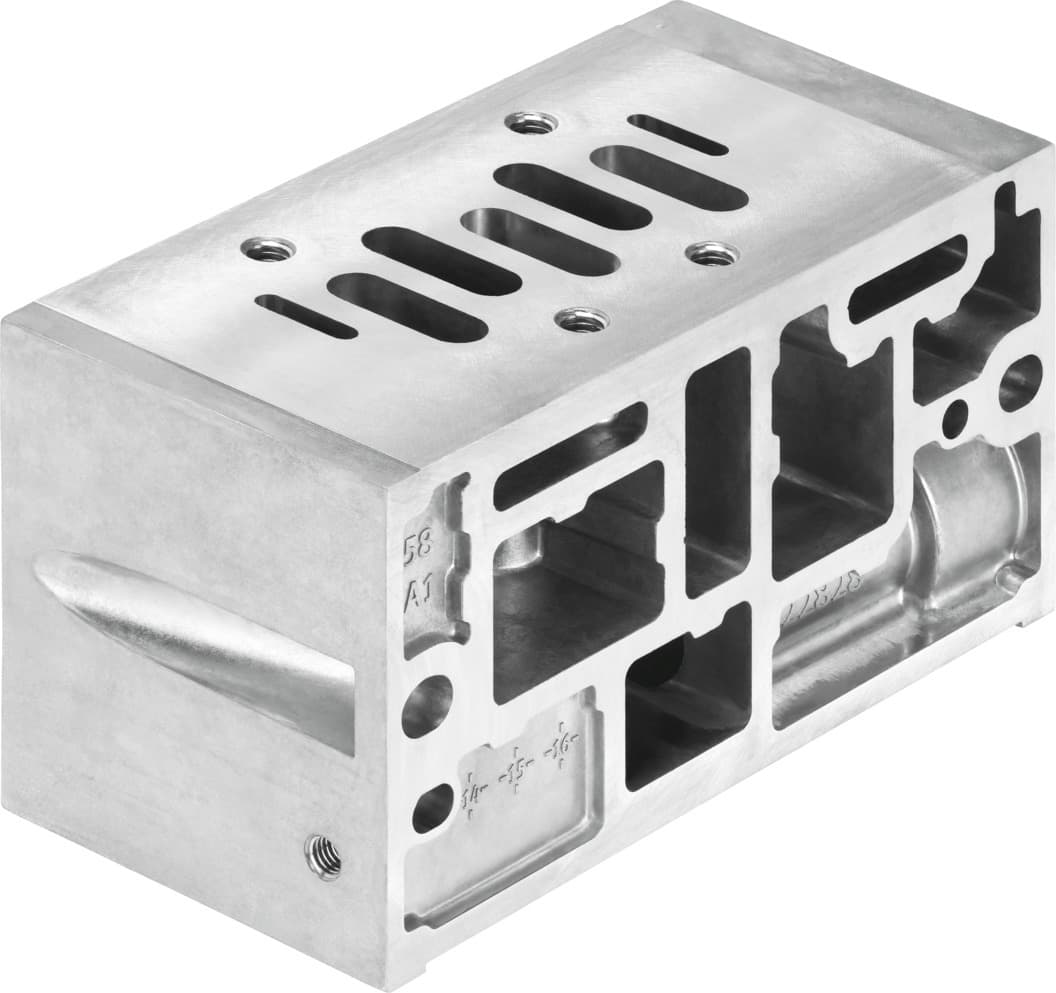

Product Model
vabv-s1-2sb-n12
Selling Points
- 1Compact Design: The VABV-S1-2SB-N12 features a compact design with a width of 59 mm, ideal for space-constrained environments.
- 2Compressed Air Operation: Operates with compressed air as per ISO 8573-1:2010 [7:4:4], ensuring consistent performance.
- 3Oil Lubrication Option: Allows operation with oil lubrication, enhancing durability and reducing wear.
- 4CE Marking and Compliance: Meets EU low voltage directive and CE marking standards for safety and regulatory compliance.
- 5Robust Construction: Made from die-cast aluminum, providing high corrosion resistance class (CRC) 0 and robust construction.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 59mm | Exhaust air function | Via throttle plate |
Based on norm | ISO 5599-1 | Max. no. of valve positions | 1 |
Operating pressure | 0bar 10bar | Suitability for vacuum | yes |
CE marking (see declaration of conformity) | As per EU low voltage directive | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -20°C 60°C |
Temperature of medium | -10°C 50°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Ambient temperature | -10°C 50°C | Product weight | 670g |
Pneumatic connection 2 | 1/2 NPT | Pneumatic connection 4 | 1/2 NPT |
Note on materials | RoHS-compliant | Material of sub-base | Die-cast aluminum |
Manufacturer ID | 8029815 |
Specifications may be subject to change without notice
