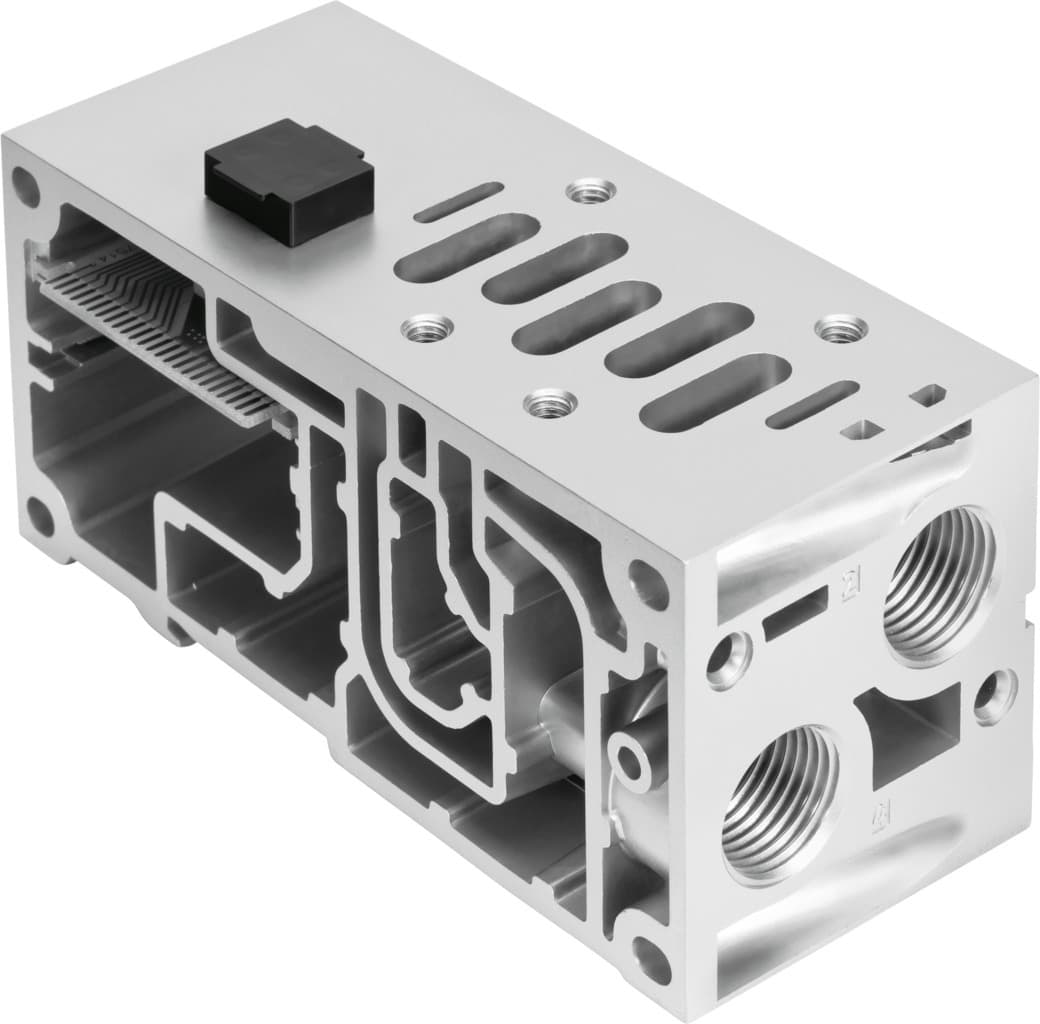

Product Model
vabv-s2-2s-n12-t1
Selling Points
- 1Made from durable aluminum die-cast material for long-lasting performance.
- 2Compatible with various pneumatic connections, including NPT1/2-14 ports.
- 3Classified as CRC 0, ensuring no corrosion stress under normal operating conditions.
- 4Compliant with EU low-voltage devices directive and UK regulations for electrical equipment.
- 5Supports operating pressures from -0.9 bar to 10 bar, making it suitable for diverse applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 59mm | Valve terminal type | 44 |
Operating pressure | -0.9bar 10bar | CE marking (see declaration of conformity) | As per EU low voltage directive |
UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 610g |
Pneumatic connection 2 | 1/2 NPT | Pneumatic connection 4 | 1/2 NPT |
Note on materials | RoHS-compliant | Plate material | Die-cast aluminum |
Manufacturer ID | 560844 |
Specifications may be subject to change without notice
