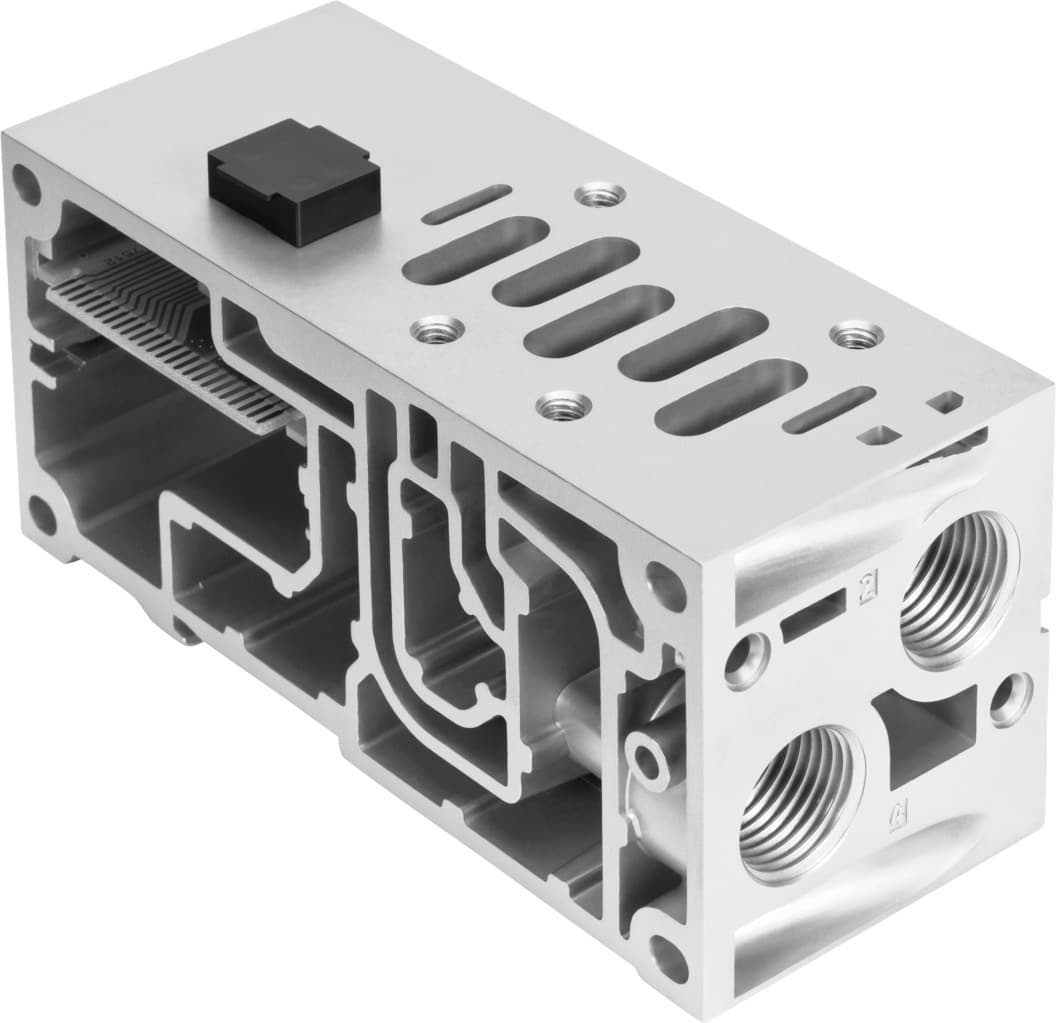

Product Model
vabv-s2-2s-n12-t2
Selling Points
- 159mm width for efficient space utilization.
- 2Die-cast aluminum plate material for durability.
- 31/2 NPT pneumatic connections for easy integration.
- 4-0.09 MPa to 1 MPa, suitable for various applications.
- 5CE marked and RoHS-compliant, ensuring regulatory compliance and safety standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 59mm | Valve terminal type | 44 |
Operating pressure | -0.9bar 10bar | CE marking (see declaration of conformity) | As per EU low voltage directive |
UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 610g |
Pneumatic connection 2 | 1/2 NPT | Pneumatic connection 4 | 1/2 NPT |
Note on materials | RoHS-compliant | Plate material | Die-cast aluminum |
Manufacturer ID | 560843 |
Specifications may be subject to change without notice
