Product Model
vabv-s4-1s-g14-2t2
Selling Points

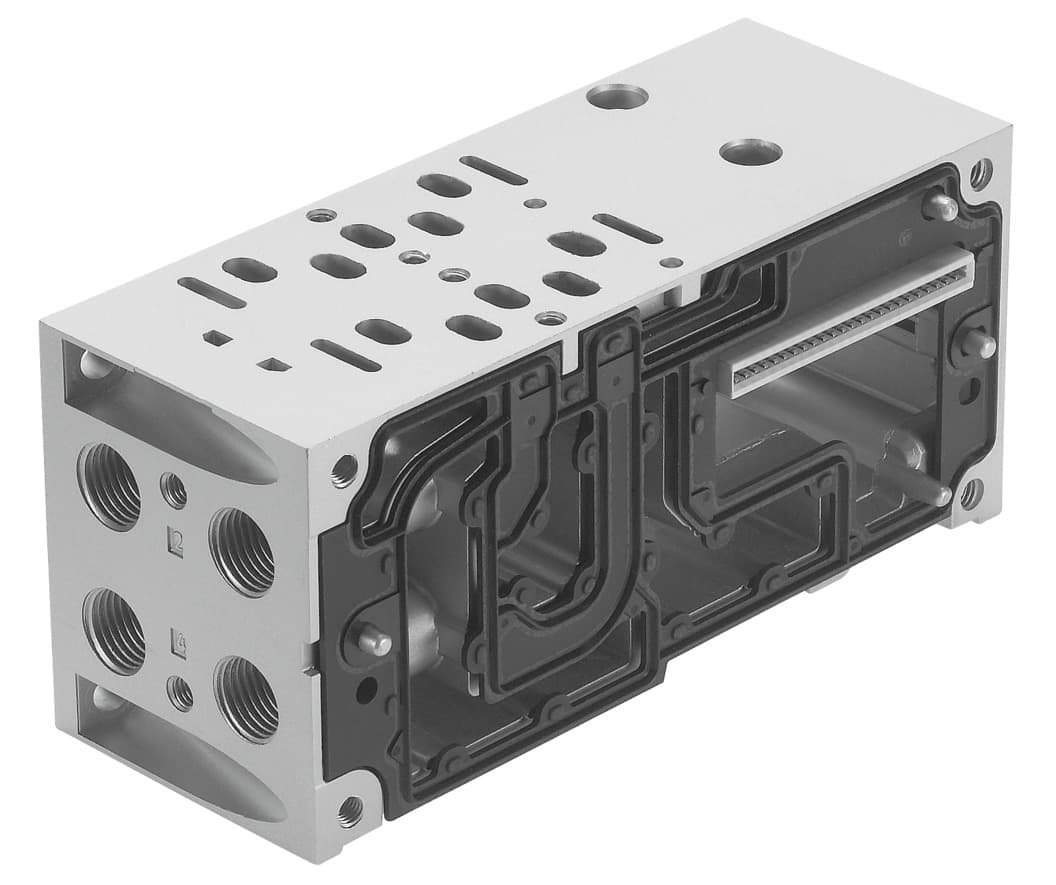

- 1The Festo VABV-S4-1S-G14-2T2 manifold sub-base is designed for valve terminals with ISO plug-in, ensuring seamless integration in pneumatic systems.
- 2This product is CE marked, adhering to the EU low-voltage directive, and features a corrosion resistance classification of CRC=0, indicating no corrosion stress.
- 3The manifold sub-base measures 26 mm in size and weighs 634 grams, making it a compact yet robust accessory for your pneumatic setup.
- 4The VABV-S4-1S-G14-2T2 conforms to RoHS standards, ensuring environmental sustainability and compliance with regulatory requirements.
- 5Manufactured from aluminium die cast material, this manifold sub-base offers durability and reliability in high-performance applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 26 mm | CE marking (see declaration of conformity) | As per EU low voltage directive |
UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 634g |
Note on materials | RoHS-compliant | Plate material | Die-cast aluminum |
Manufacturer ID | 539220 |
Specifications may be subject to change without notice
