Product Model

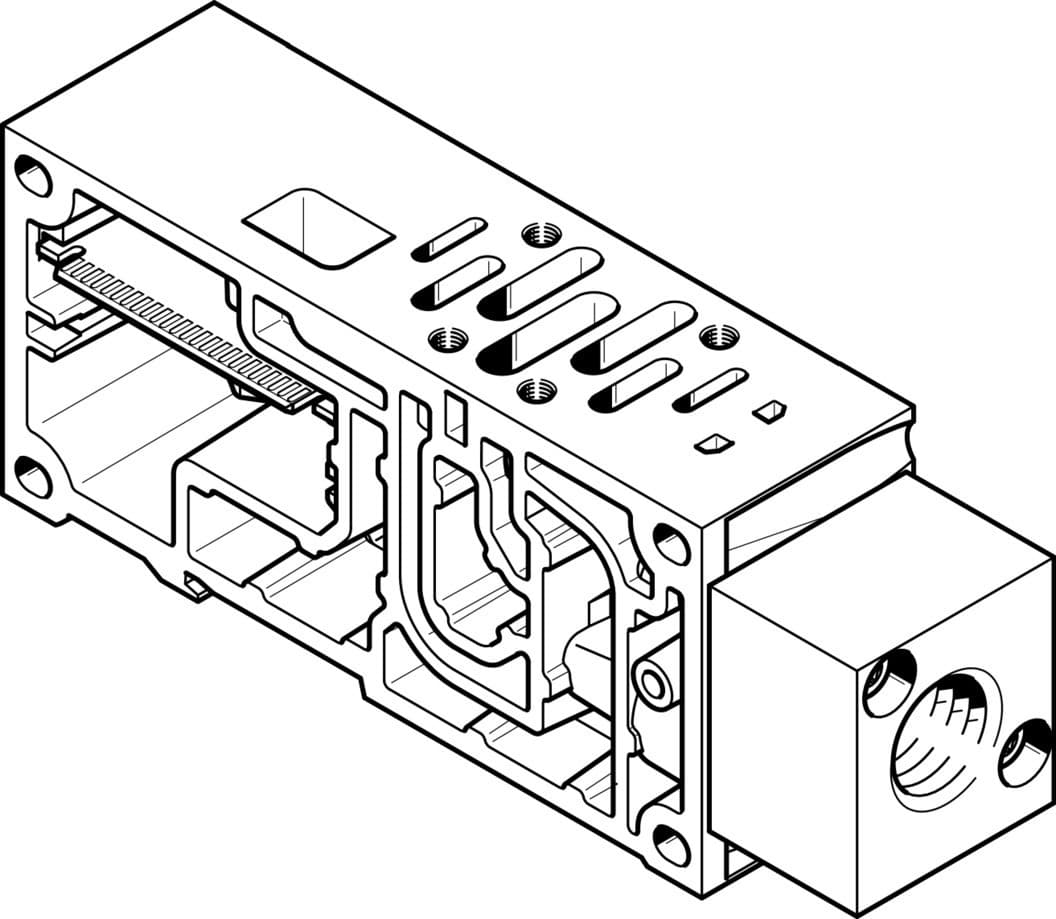

vabv-s6-1q-n12
Selling Points
- 1The VABV-S6-1Q-N12 manifold sub-base withstands severe vibration tests, ensuring reliable performance in transport applications.
- 2Designed to withstand shock tests with severity level 2, this sub-base provides robustness in demanding environments.
- 3Meets EU low voltage directive standards and is CE marked for conformity, ensuring compliance with safety regulations.
- 4With a corrosion resistance class of 0, this sub-base is resistant to corrosion stress, extending its lifespan.
- 5Made from die-cast aluminum, the VABV-S6-1Q-N12 is RoHS compliant and features a sturdy construction for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 43mm | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Note on forced dynamization | Switching frequency at least once a month |
CE marking (see declaration of conformity) | As per EU low voltage directive | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 570g |
Pneumatic connection 1 | 1/2 NPT | Note on materials | RoHS-compliant |
Plate material | Die-cast aluminum | Manufacturer ID | 556988 |
Specifications may be subject to change without notice
