FestoAccessories for pneumatic valves
Product Model

vacc-s13-11-k4-1-ex4a

Manufacturer

Festo

Category

Accessories for pneumatic valves

Product ID

16711

In Stock
Last updated: 2025/4/19
View Specifications

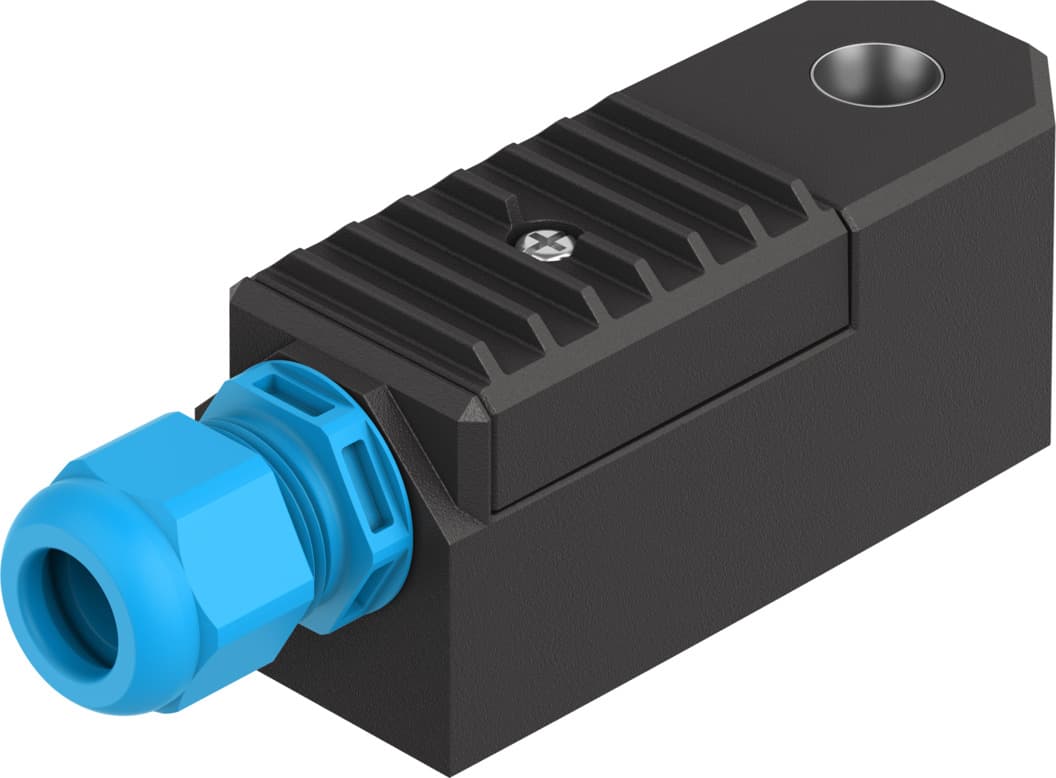

Festo vacc-s13-11-k4-1-ex4a

Selling Points

  • 1Designed for use in explosive gas and dust atmospheres, ensuring safety in hazardous environments.
  • 2Operates on 14 to 32 V DC, providing flexibility in power supply configurations.
  • 3Certified intrinsically safe circuits ensure reliable operation in critical applications.
  • 4Built with polyamide 6 housing and polyurethane sealing compound for long-lasting performance.
  • 5Compatible with Festo valves and easy to integrate into pneumatic systems, minimizing setup time.
Product Details
vacc-s13-11-k4-1-ex4a
Festo

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Actuation type
Electrical
Mounting position
Any
Switching position indication
no
Duty cycle
100%
Required current consumption
0.016A
Insulation class
H
Max. input power Pi
1.2 W
Max. input voltage Vi
32 V
Max. input current Ii
0.2 A
Coil characteristics
14-32 V DC: 0.22 - 1.1 W
Effective internal capacitance Ci
Negligibly low
Effective internal inductance Li
Negligibly low
Permissible voltage fluctuations
-15 % / +10 %
CE marking (see declaration of conformity)
As per EU EMC directive as per EU explosion protection directive (ATEX) As per EU RoHS directive
UKCA marking (see declaration of conformity)
as per UK instructions for EMC (UK-E) as per UK EX instructions (UK-X) as per UK RoHS instructions (UK-R)
Explosion protection certification outside the EU
EPL Db (GB) EPL Db (IEC-EX) EPL Gb (GB) EPL Gb (IEC-EX)
Explosion prevention and protection
Zone 1 (ATEX) Zone 1 (IEC-EX) Zone 1 (UKEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 21 (IEC-EX) Zone 21 (UKEX) Zone 22 (ATEX)
Certificate issuing authority
BVS 15 ATEX E 030 X IECEx BVS 15.0020 X TüV 21 UKEX 7016 X
ATEX category gas
II 2G
ATEX category for dust
II 2D
Type of ignition protection for gas
Ex ia IIC T5/T6 Gb
Type of (ignition) protection for dust
Ex ia IIIC T95°C/T80°C IP65 Db
Explosive ambient temperature
T5/T95°C: -30°C <= Ta <= +65°C T6/T80°C: -30°C <= Ta <= +50°C
LABS (PWIS) conformity
VDMA24364 zone III
Degree of protection
IP65
Product weight
330g
Electrical connection
Terminal box, cable entry thread M20x1.5
Note on materials
RoHS-compliant
Manufacturer ID
8109401

Specifications may be subject to change without notice
