Product Model

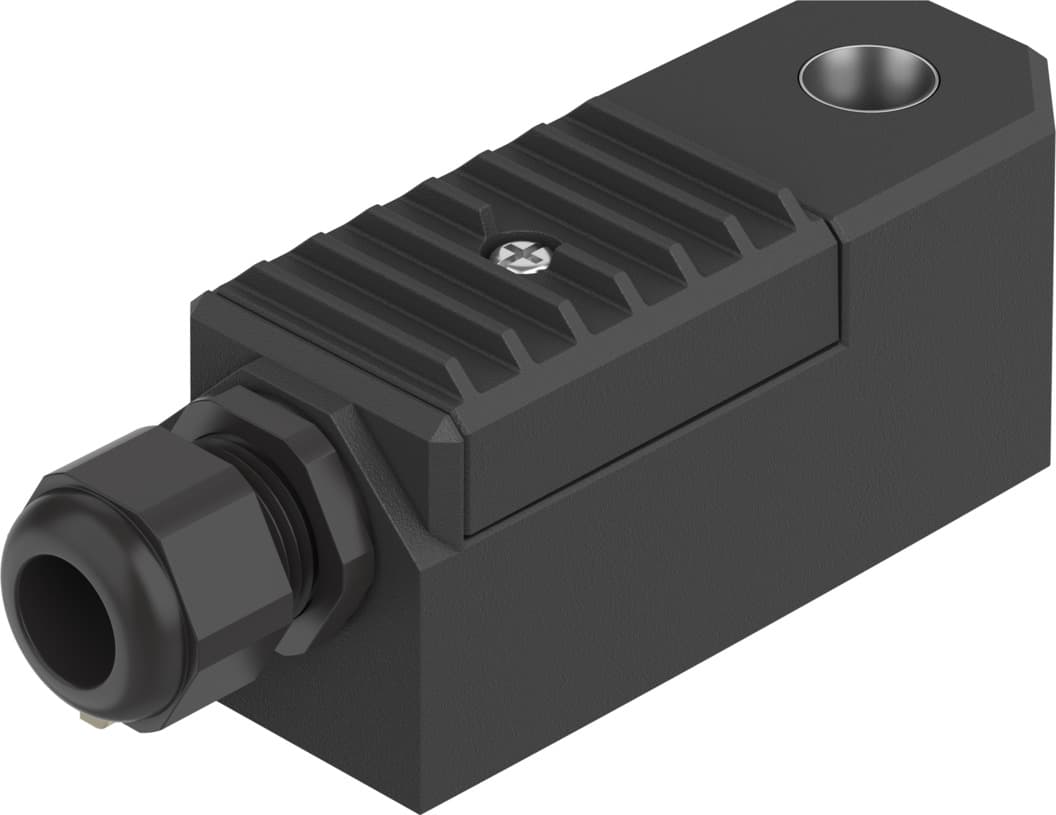

vacc-s13-18-k4-3u-ne4me
Selling Points
- 1High-Performance Electrical Actuation: The VACC-S13-18-K4-3U-NE4ME solenoid coil offers reliable and efficient electrical actuation.
- 2100% Duty Cycle: Operate continuously at 100% duty cycle, ensuring consistent performance in demanding applications.
- 3IP65 Protection: Features a high degree of protection against solid particles and water, suitable for harsh environments.
- 4Explosion-Proof Certification: Certified for use in explosive gas and dust atmospheres, meeting EPL Db and Gb standards.
- 5Robust Design: Constructed with durable materials, including a terminal box and cable entry thread M20x1.5 for secure connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Actuation type | Electrical | Mounting position | Any |
Switching position indication | no | Duty cycle | 100% |
Insulation class | H | Coil characteristics | 230 V DC: 1.8 W 230 V AC: 40/65 Hz, power 1.8 VA |
Permissible voltage fluctuations | -15 % / +10 % | Explosion protection certification outside the EU | EPL Db (CN) EPL Gb (CN) |
Explosion prevention and protection | Zone 1 (CN) Zone 21 (CN) | Certificate issuing authority | GYJ23.1170X |
Type of ignition protection for gas | Ex eb mb IIC T6… T4 Gb | Type of (ignition) protection for dust | Ex tb IIIC T85°C… T130°C Db |
Explosive ambient temperature | T4, T130°C: -30°C <= Ta <= +60°C T5, T95°C: -30°C <= Ta <= +60°C T6, T85°C: -30°C <= Ta <= +50°C | LABS (PWIS) conformity | VDMA24364 zone III |
Degree of protection | IP65 | Product weight | 330g |
Electrical connection | Terminal box, cable entry thread M20x1.5 | Note on materials | RoHS-compliant |
Manufacturer ID | 8118331 |
Specifications may be subject to change without notice
