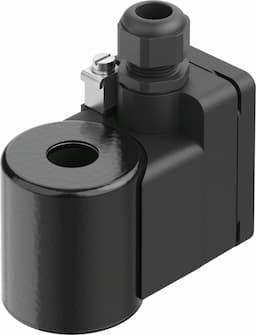

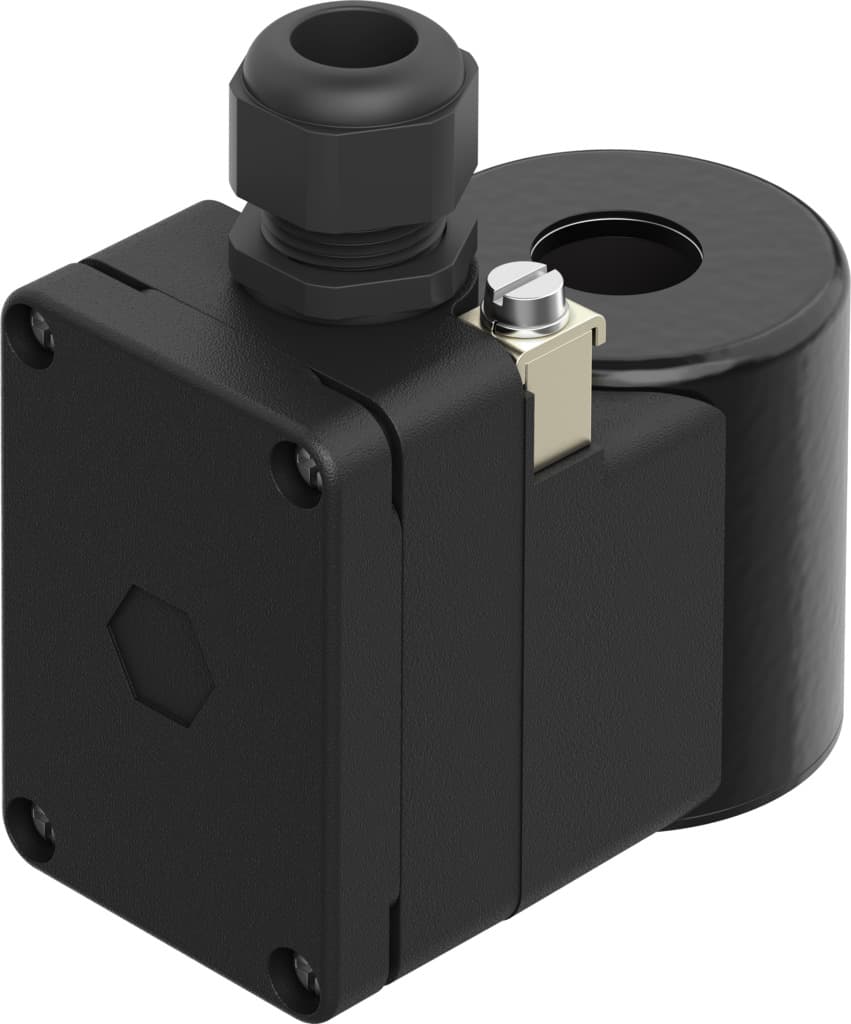

Product Model
vacc-s18-35-k4-2u-ks4me
Selling Points
- 1Efficient Energy Conversion: Converts electrical energy into mechanical movement with high precision.
- 2Compact Design: Optimized for easy integration into various industrial systems and machinery.
- 3Robust Construction: Built with high-quality materials for durability and optimal performance.
- 4Explosion Protection: Certified for Zone 1 (KR) and Zone 21 (KR) with Ex e mb IIC T5/T6 and Ex tD A21 IP66 T95°C/T80°C.
- 5Reliable Operation: Operates at 100% duty cycle with insulation material class H and permissible voltage fluctuations of -15% / +10%.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Actuation type | Electrical | Mounting position | Any |
Switching position indication | no | Duty cycle | 100% |
Insulation class | H | Coil characteristics | 110 V AC: 50/60 Hz, power 3.5 VA 110 V DC: 3.5 W |
Permissible voltage fluctuations | -15 % / +10 % | Explosion protection certification outside the EU | EPL Db (KR) EPL Gb (KR) |
Explosion prevention and protection | Zone 1 (KR) Zone 21 (KR) | Certificate issuing authority | 22-AV4BO-0256X 22-AV4BO-0257X |
Type of ignition protection for gas | Ex e mb IIC T5, T6 | Type of (ignition) protection for dust | Ex tD A21 IP66 T85/T95°C |
Explosive ambient temperature | T5, T95°C: -25°C <= Ta <= +60°C T6, T80°C: -25°C <= Ta <= +50°C | LABS (PWIS) conformity | VDMA24364 zone III |
Degree of protection | IP66 | Product weight | 580g |
Electrical connection | Terminal box, cable entry thread M20x1.5 | Note on materials | RoHS-compliant |
Manufacturer ID | 8118315 |
Specifications may be subject to change without notice
