Product Model

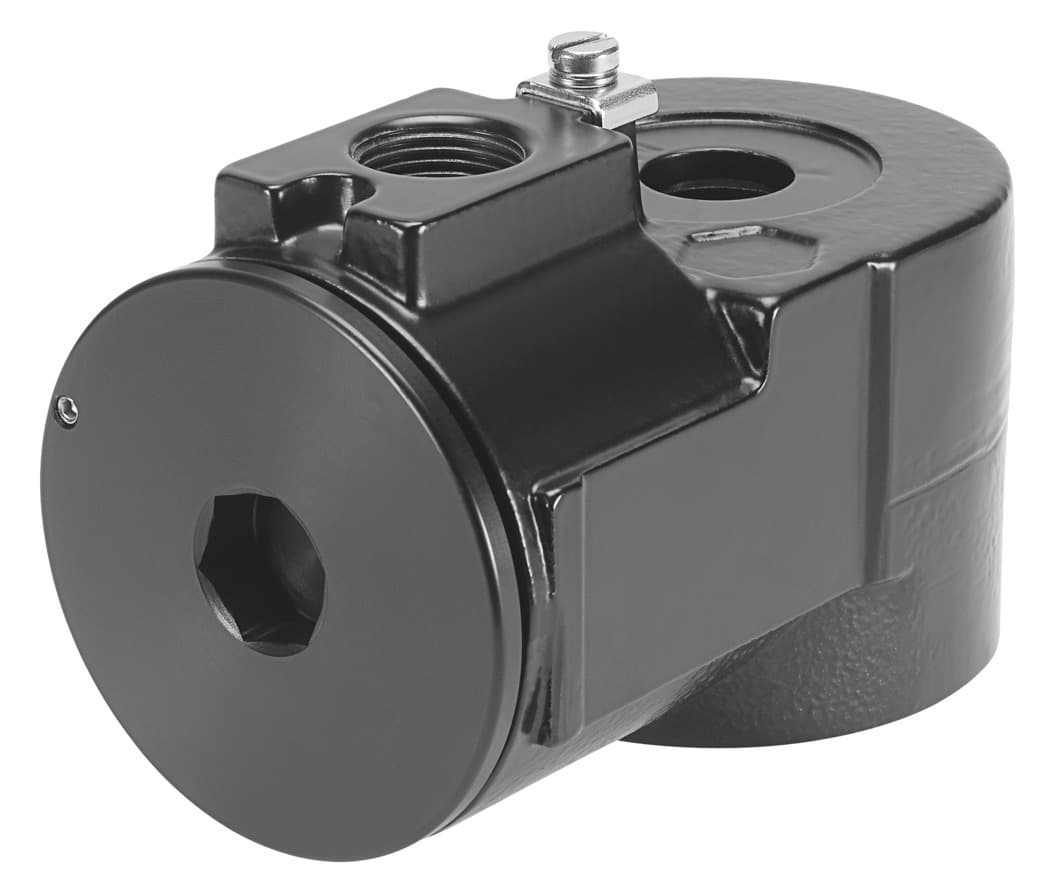

vacc-s18-70-k4-1u-ex4d
Selling Points
- 1The Festo VACC-S18-70-K4-1U-EX4D solenoid coil offers reliable electrical actuation, ensuring precise control in various industrial applications.
- 2Certified for use in explosive gas (II 2G) and dust (II 2D) environments, this solenoid coil meets stringent safety standards, making it ideal for hazardous zones.
- 3Compatible with both 24 V DC and AC, this solenoid coil operates efficiently within a wide voltage range, ensuring flexibility in different systems.
- 4Built with high-quality materials like grey cast iron and wrought aluminum alloy, the VACC-S18-70-K4-1U-EX4D solenoid coil is designed for long-lasting performance.
- 5Featuring an IP65 rating, this solenoid coil is protected against dust and water ingress, ensuring reliable operation in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Actuation type | Electrical | Mounting position | Any |
Switching position indication | no | Duty cycle | 100% |
Insulation class | H | Coil characteristics | 24 V AC: 50/60 Hz, power 7.0 VA 24 V DC: 7.0 W |
Permissible voltage fluctuations | -15 % / +10 % | CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) As per EU RoHS directive |
UKCA marking (see declaration of conformity) | acc. to UK EX instructions To UK RoHS instructions | Explosion protection certification outside the EU | EPL Db (GB) EPL Db (IEC-EX) EPL Gb (GB) EPL Gb (IEC-EX) |
Explosion prevention and protection | Zone 1 (ATEX) Zone 1 (IEC-EX) Zone 1 (UKEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 21 (IEC-EX) Zone 21 (UKEX) Zone 22 (ATEX) | Certificate issuing authority | BVS15ATEXE135 IECExBVS.15.0116 |
ATEX category gas | II 2G | ATEX category for dust | II 2D |
Type of ignition protection for gas | Ex db IIC T6, T5, T4 Gb | Type of (ignition) protection for dust | Ex tb IIIC T80°C,95°C,130°C Db |
Explosive ambient temperature | T4, T130°C: -50°C <= Ta <= +90°C T5, T95°C: -50°C <= Ta <= +55°C T6, T80°C: -50°C <= Ta <= +40°C | Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress |
LABS (PWIS) conformity | VDMA24364 zone III | Degree of protection | IP65 |
Product weight | 1700g | Electrical connection | Terminal box, cable entry thread M20x1.5 |
Note on materials | RoHS-compliant | Solenoid coil material | Wrought aluminum alloy Gray cast iron |
Manufacturer ID | 3504563 |
Specifications may be subject to change without notice
