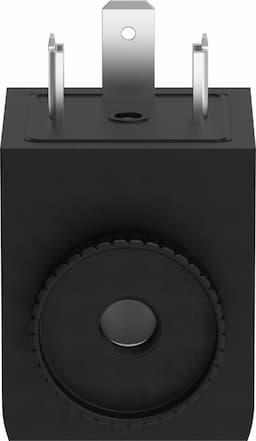

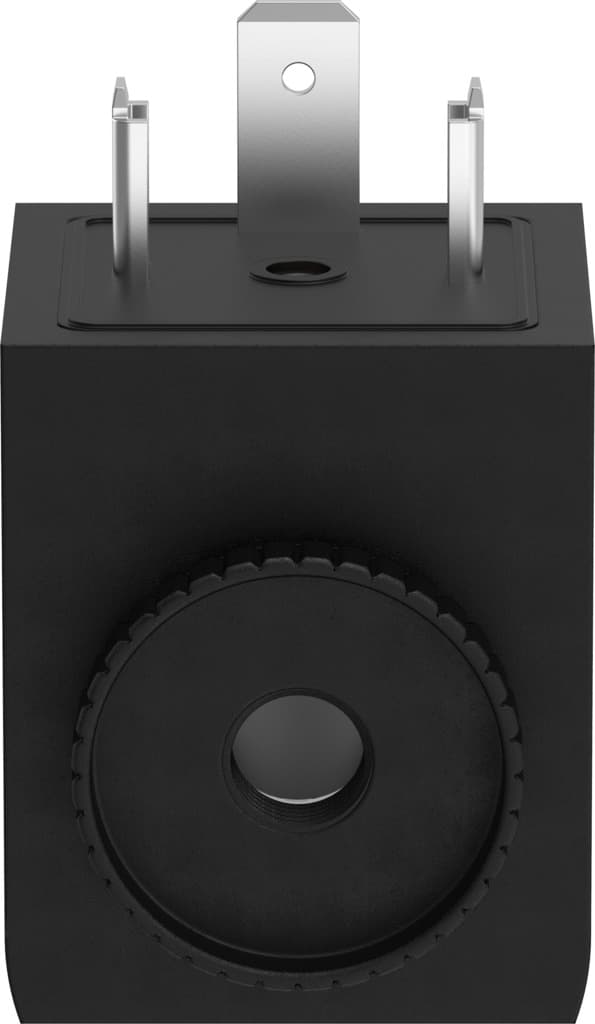

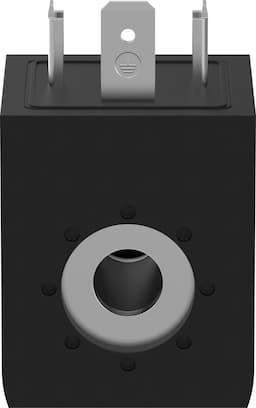

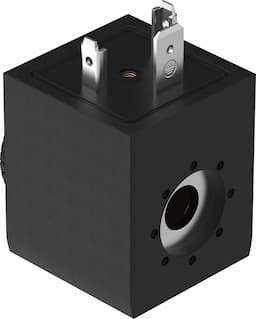

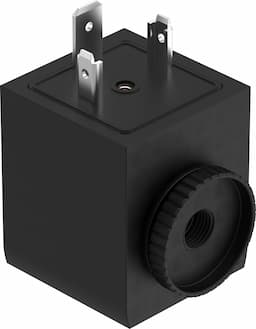

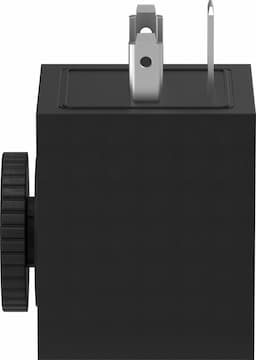

Festo VACF-A-A1-16B Solenoid Coil: High-Performance and Reliable

Selling Points

1Arbitrary Installation Position: Install the solenoid coil in any position, ensuring flexibility in your setup.
2100% Power-On Time: Achieve consistent performance with a 100% power-on time, ensuring reliable operation.
3Compliant with International Standards: Meets IEC 61010-1 and EU low voltage directive, ensuring safety and reliability.
4Robust Insulation and Protection: Features IP65 protection and insulation class H, providing robust protection against environmental factors.
5Versatile Voltage Compatibility: Operates at 110/120 V AC (50/60 Hz), making it suitable for a wide range of applications.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Mounting position	Any	Conforms to standard	IEC 61010-1
Duty cycle	100%	Insulation class	H
Coil characteristics	110/120 V AC: 50/60 Hz, initial power 2.7 VA, holding power 1.9 VA	Surge resistance	2.5kV
Contamination level	3	Permissible voltage fluctuations	+/- 10 %
Certification	c UL us - Recognized (OL)	Maritime classification	See certificate
CE marking (see declaration of conformity)	As per EU low voltage directive	UKCA marking (see declaration of conformity)	To UK instructions for electrical equipment
Certificate issuing authority	DNVGL-TAA000011J UL MH18122	Restricted ambient and media temperature	-20 - 50 °C
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Temperature of medium	-20°C 50°C	Degree of protection	IP65
Ambient temperature	-20°C 60°C	Product weight	82.4g
Electrical connection	Form A as per EN 175301-803	Type of mounting	With knurled nut
Note on materials	RoHS-compliant	Housing material	PA Steel
Solenoid coil material	Copper Steel Thermoplastic	Material of winding	Copper
Manufacturer ID	8030826

Specifications may be subject to change without notice
