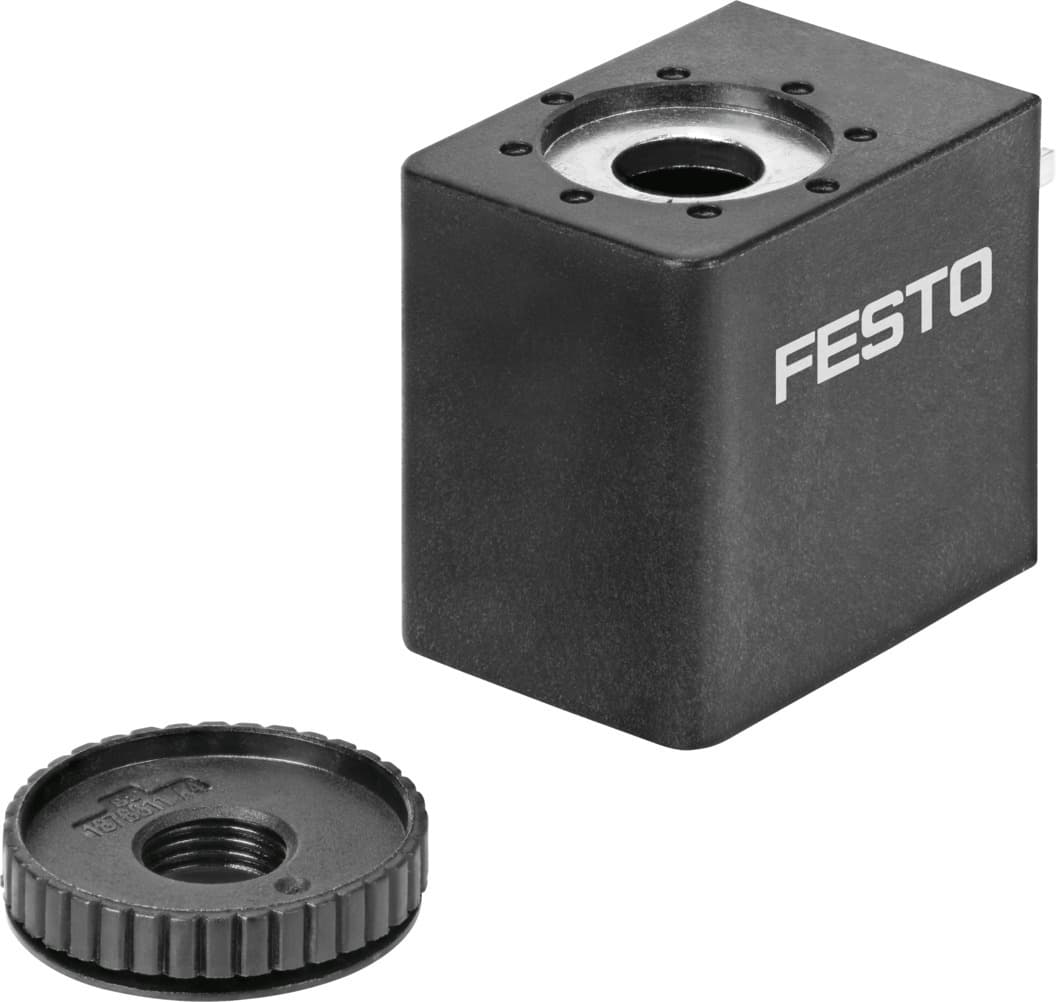

Product Model
vacf-b-c1-5
Selling Points
- 1100% Duty Cycle: Operate continuously without overheating.
- 2IP65 Protection: Durable and resistant to dust and water.
- 3±10% Voltage Fluctuation: Stable performance under varying voltage conditions.
- 4RoHS Compliant: Meets environmental regulations for safe disposal.
- 5Mounting via Knurled Nut: Easy installation with secure fastening.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Mounting position | Any | Conforms to standard | IEC 61010-1 |
Duty cycle | 100% | Insulation class | H |
Coil characteristics | 12 V DC: 3.4 W | Permissible voltage fluctuations | +/- 10 % |
Certification | c UL us - Recognized (OL) | Certificate issuing authority | UL MH18122 |
Restricted ambient and media temperature | -20 - 50 °C | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -20°C 50°C |
Degree of protection | IP65 | Ambient temperature | -20°C 60°C |
Product weight | 52.4g | Electrical connection | Form C as per EN 175301-803 |
Type of mounting | With knurled nut | Note on materials | RoHS-compliant |
Housing material | PA Steel | Solenoid coil material | Copper Steel Thermoplastic |
Material of winding | Copper | Manufacturer ID | 8030810 |
Specifications may be subject to change without notice
