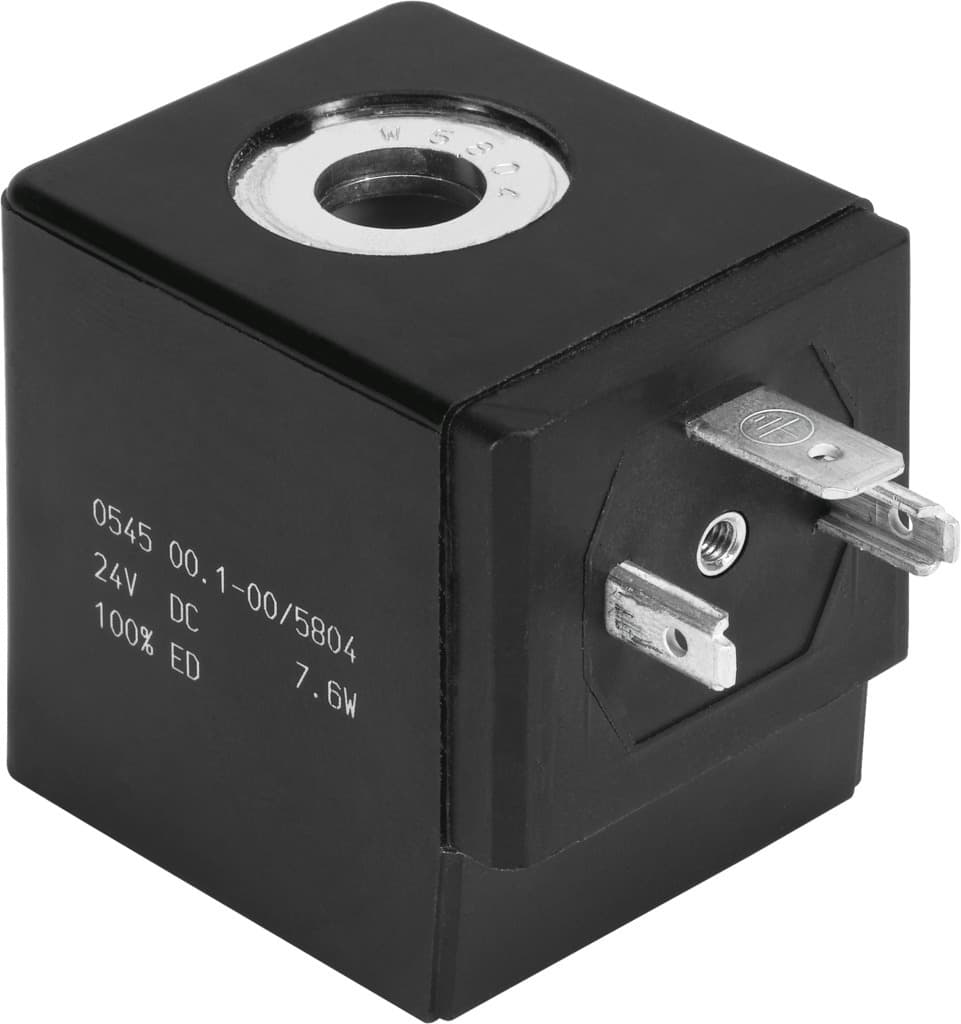

Festo VACN-H1-A1-2A Solenoid Coil - High Performance and Reliability

Selling Points

1Versatile Installation: The VACN-H1-A1-2A solenoid coil can be installed in any position, offering flexibility in setup.
2Fast Response Time: With a minimum pick-up time of 12 ms, this coil ensures quick and efficient operation.
3High Power Factor: The coil maintains a power factor of 0.7, ensuring optimal energy usage and efficiency.
4Robust Design: Protected by an IP65 rating, this coil is resistant to dust and water, making it suitable for harsh environments.
5Compliance and Safety: CE certified and RoHS compliant, ensuring compliance with EU low voltage directives and safety standards.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Mounting position	Any	Switching position indication	no
Min. pick-up time	12ms	Duty cycle	100%
Power factor cos {phi}	0.7	Coil characteristics	110 V AC: 50/60 Hz, pick-up power 36.0 VA, holding power 18.5 VA
Surge resistance	2.5kV	Contamination level	3
Permissible frequency fluctuations	+/- 10%	Permissible voltage fluctuations	+/- 10 %
CE marking (see declaration of conformity)	As per EU low voltage directive	UKCA marking (see declaration of conformity)	To UK instructions for electrical equipment
Restricted ambient and media temperature	(for limited duty cycle) -20 - 60 °C	Corrosion resistance class (CRC)	4 - Particularly high corrosion stress
LABS (PWIS) conformity	VDMA24364 zone III	Degree of protection	IP65
Note on degree of protection	In mounted state	Ambient temperature	-20°C 50°C
Max. tightening torque of pneumatic fitting	2Nm	Product weight	150g
Electrical connection	Form A Plug as per DIN EN 175301-803 Rectangular design	Type of mounting	With lock nut
Note on materials	RoHS-compliant	Solenoid coil material	Copper Steel Thermoplastic
Material of winding	Copper	Manufacturer ID	8022878

Specifications may be subject to change without notice
