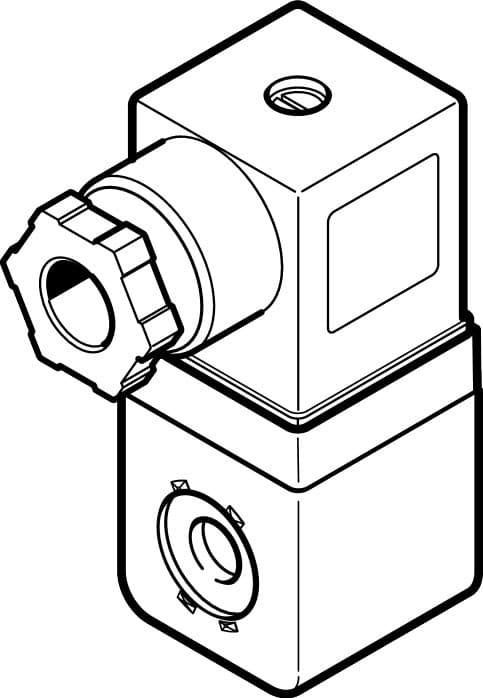

Product Model
vacn-n-a1-1-ex4-a
Selling Points
- 1100% Duty Cycle: Continuous operation without interruption.
- 2ATEX Certified: Safe for use in explosive gas and dust atmospheres.
- 3Low Current Consumption: Only 27 mA required for operation.
- 4IP65 Protection: High protection against dust and water ingress.
- 5Wide Temperature Range: Operates from -40°C to +85°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Actuation type | Electrical | Mounting position | Any |
Duty cycle | 100% | Required current consumption | 0.027A |
Insulation class | F | Enameled wire insulation class | H |
Max. input voltage Vi | 28 V | Max. input current Ii | 115 mA |
Effective internal capacitance Ci | Negligibly low | Effective internal inductance Li | Negligibly low |
Maritime classification | See certificate | CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) |
UKCA marking (see declaration of conformity) | acc. to UK EX instructions | Explosion protection certification outside the EU | EPL Db (BR) EPL Db (CN) EPL Db (GB) EPL Db (IEC-EX) EPL Gb (BR) EPL Gb (CN) EPL Gb (GB) EPL Gb (IEC-EX) |
Explosion prevention and protection | Zone 1 (ATEX) Zone 1 (BR) Zone 1 (CN) Zone 1 (IEC-EX) Zone 1 (UKEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 21 (BR) Zone 21 (CN) Zone 21 (IEC-EX) Zone 21 (UKEX) Zone 22 (ATEX) | Certificate issuing authority | CCC 2021322307003993 DNV 15.0188 DNV TAA000011J GYJ21.1326 IECEx PTB 15.0013 PTB 09 ATEX 2043 |
ATEX category gas | II 2G | ATEX category for dust | II 2D |
Type of ignition protection for gas | Ex ia IIC/IIB T6/T4 Gb | Type of (ignition) protection for dust | Ex tb IIIC T80°C/T130°C Db |
Explosive ambient temperature | T4, T130°C: -40°C <= Ta <= +85°C T6, T80°C: -40°C <= Ta <= +50°C | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Degree of protection | IP65 |
Ambient temperature | -20°C 50°C | Product weight | 114g |
Electrical connection | Form A as per DIN EN 175301-803 | Type of mounting | With knurled nut |
Note on materials | RoHS-compliant | Housing material | Polymer Steel |
Material of pin contacts | Brass | Material of winding | Copper |
Manufacturer ID | 8029139 |
Specifications may be subject to change without notice
